ToyotaPrevia / TaragoACR50LACR50L-GFPGKElectricsHeating & air conditioning - cooler piping

Heating & air conditioning - cooler piping for Previa / Tarago ACR50L




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01   88718-2J320       0.00 USD


Scheme 1 Scheme 2 Scheme 3 Scheme 4

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Click part number in the scheme or in the list:

88719A SENSOR, AIR CONDITIOER PRESSURE
88460 CONDENSER ASSY, COOLER
88474 DRYER, COOLER
88467 CUSHION, COOLER CONDENSER, NO.1
88710K TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3
88703 HOSE SUB-ASSY, DISCHARGE
88712 HOSE, COOLER REFRIGERANT SUCTION, NO.1
886882R040 ** Std Part
887182D150 ** Std Part
887182J310 ** Std Part
9017906178 ** Std Part
9155380622 ** Std Part
886882R130 ** Std Part
88710E TUBE & ACCESSORY ASSY, AIR CONDITIONER
887182J320 ** Std Part
88716D PIPE, COOLER REFRIGERANT LIQUID, D
** 87-14
** 87-19
91511B0614 ** Std Part

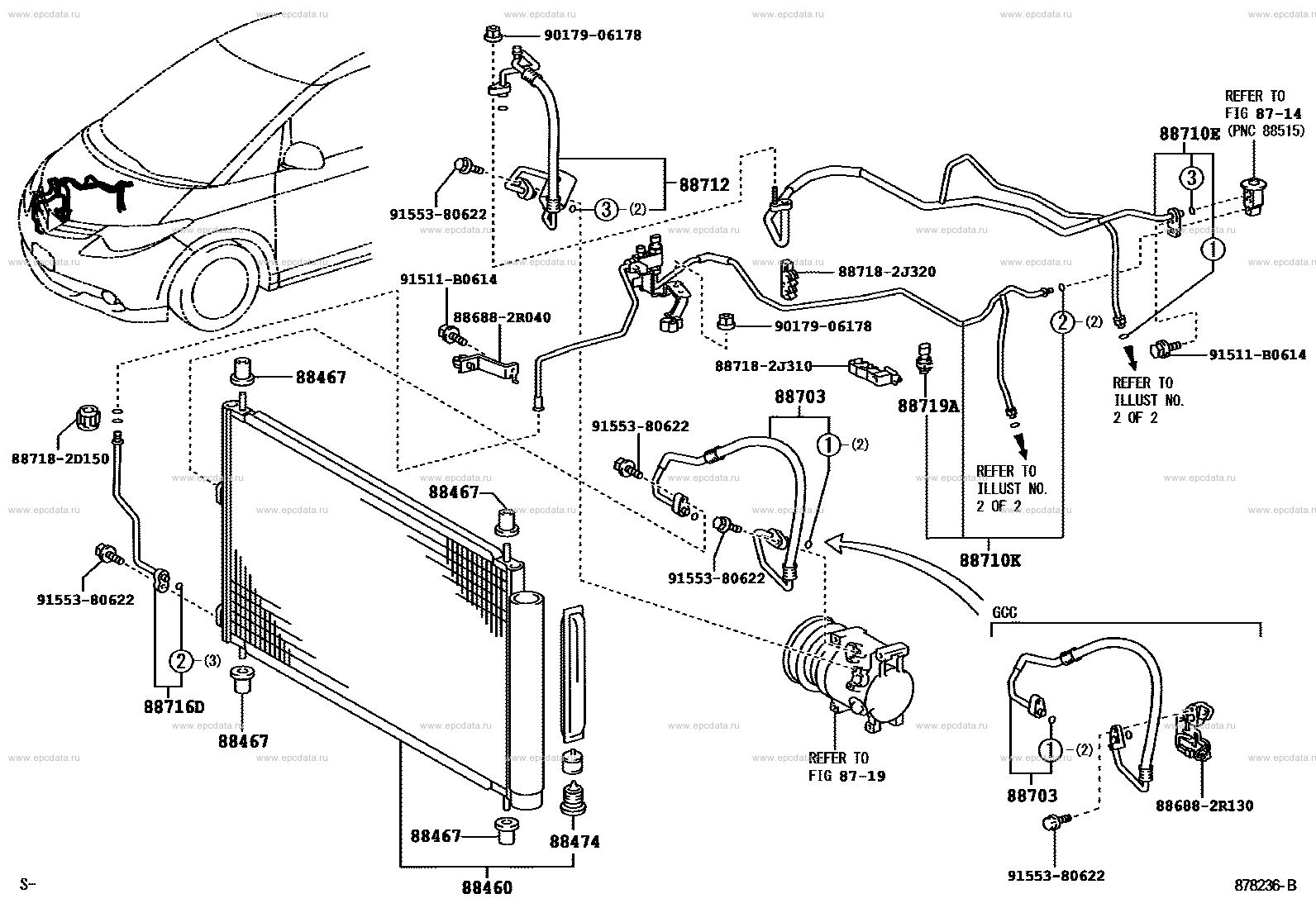

Scheme 2

Click part number in the scheme or in the list:

88719A SENSOR, AIR CONDITIOER PRESSURE
9017906178 ** Std Part
88703 HOSE SUB-ASSY, DISCHARGE
886882R050 ** Std Part
91511B0614 ** Std Part
9155380622 ** Std Part
9155380612 ** Std Part
88460 CONDENSER ASSY, COOLER
88474 DRYER, COOLER
88467 CUSHION, COOLER CONDENSER, NO.1
88710K TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3
88712 HOSE, COOLER REFRIGERANT SUCTION, NO.1
886882R040 ** Std Part
887182D150 ** Std Part
887182J340 ** Std Part
887182J310 ** Std Part
88710E TUBE & ACCESSORY ASSY, AIR CONDITIONER
887182J320 ** Std Part
88716D PIPE, COOLER REFRIGERANT LIQUID, D
** 87-14
** 87-19
88715A PIPE, COOLER REFRIGERANT DISCHARGE, A

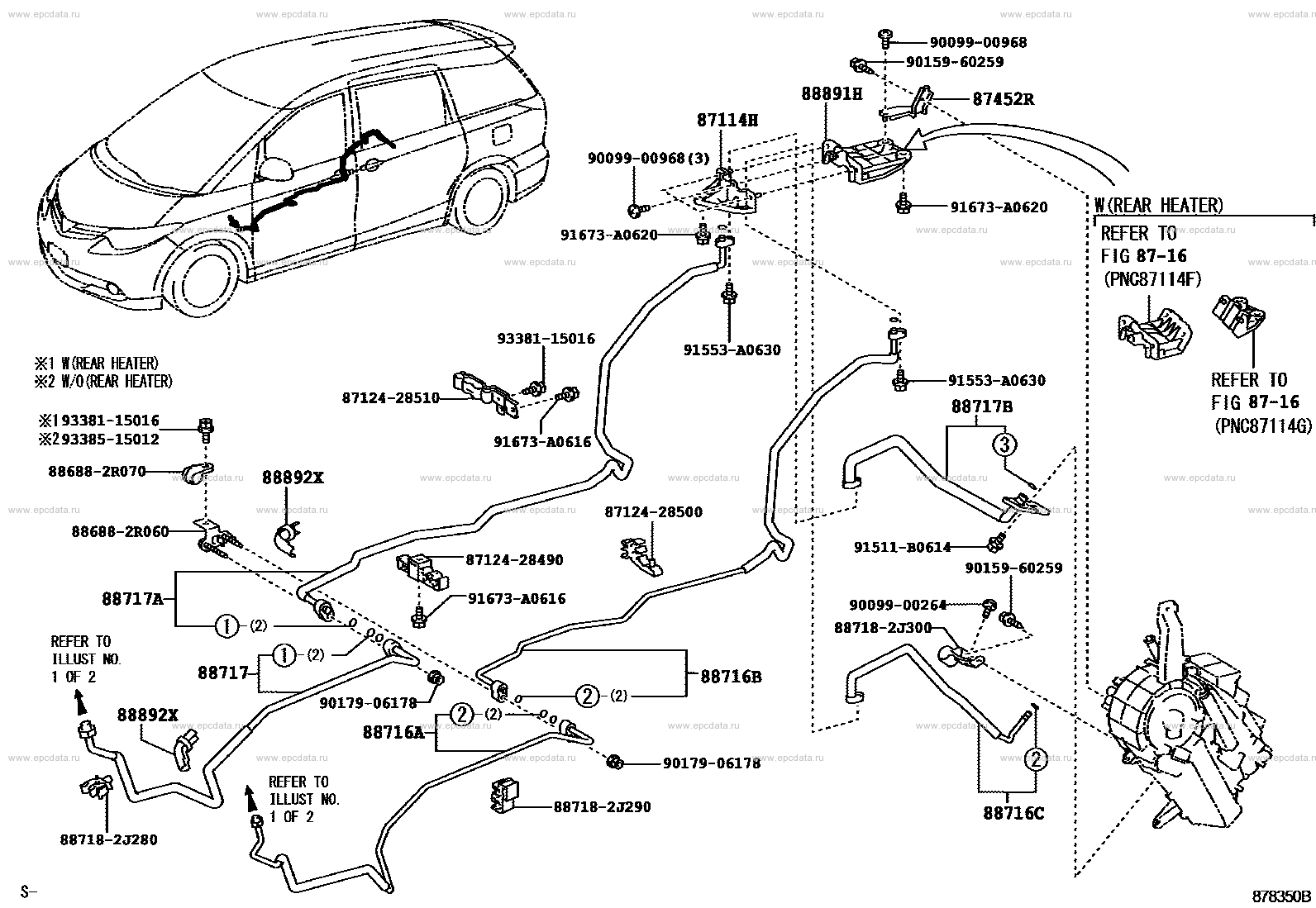

Scheme 3

Click part number in the scheme or in the list:

88716A PIPE, COOLER REFRIGERANT LIQUID, A
88717 PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717A PIPE, COOLER REFRIGERANT SUCTION, A
88892X COVER, COOLER, NO.2
8712428490 ** Std Part
8712428500 ** Std Part
8712428510 ** Std Part
886882R060 ** Std Part
886882R070 ** Std Part
887182J280 ** Std Part
887182J290 ** Std Part
88717B PIPE, COOLER REFRIGERANT SUCTION, B
88716C PIPE, COOLER REFRIGERANT LIQUID, C
887182J300 ** Std Part
9009900264 ** Std Part
9015960259 ** Std Part
9017906178 ** Std Part
91511B0614 ** Std Part
91553A0630 ** Std Part
91673A0616 ** Std Part
9338115016 ** Std Part
88716B PIPE, COOLER REFRIGERANT LIQUID, B
91673A0620 ** Std Part
87114H COVER, HEATER
87452R BRACKET, HEATER, NO.1
88891H COVER, COOLER, NO.1
9009900968 ** Std Part
9338515012 ** Std Part
** 87-16

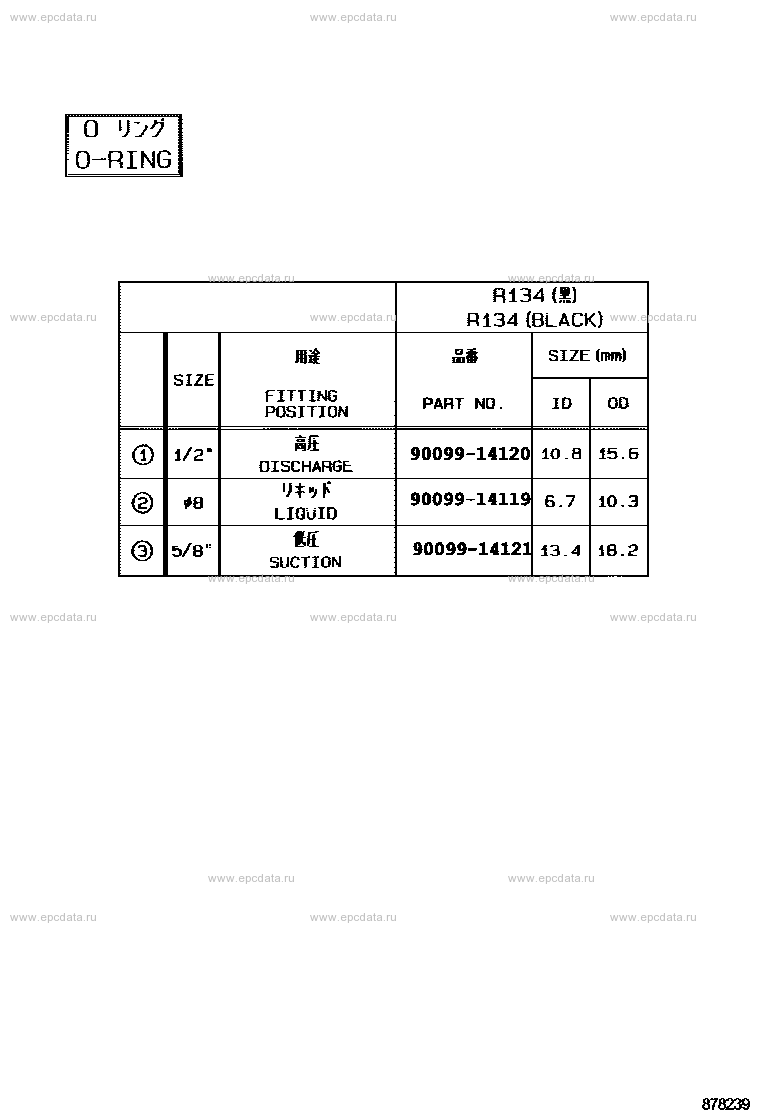

Scheme 4

Click part number in the scheme or in the list:

9009914120 ** Std Part
9009914119 ** Std Part
9009914121 ** Std Part
