Brake pedal & bracket for Dyna WU412L




Here are parts you've selected:

No PNC#
(SUB)
OEM part number Required
per car
Production period Name Applicability Please order in advance In stock
01 47101 47101-37090 01 12.2002 PEDAL SUB-ASSY, BRAKE XZU414,424..LHD..GEN
BU410,420,WU41#,422,XZU412,413,417,422,423,427..GCC,GEN,TAIW
 12.00
to 12.24 USD



Click on the part subgroup below to get genuine part numbers.

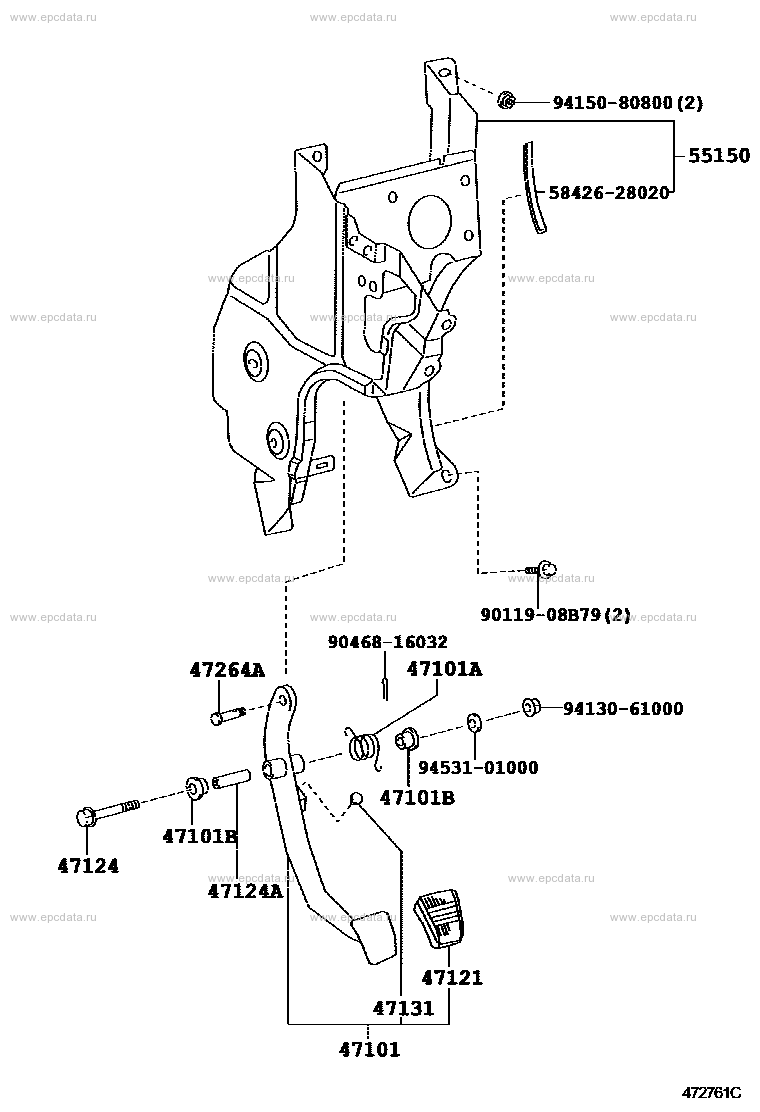

Click part number in the scheme or in the list:

55150 BRACKET ASSY, PEDAL
47264A PIN (FOR PUSH ROD)
47101B BUSH (FOR BRAKE PEDAL)
47124 SHAFT, BRAKE PEDAL
47124A COLLAR (FOR BRAKE PEDAL SHAFT)
47101 PEDAL SUB-ASSY, BRAKE
47131 CUSHION (FOR STOP LAMP SWITCH)
47121 PAD, BRAKE PEDAL
9453101000 ** Std Part
47101A SPRING (FOR BRAKE PEDAL RETURN)
9046816032 ** Std Part
9413061000 ** Std Part
9011908B79 ** Std Part
9415080800 ** Std Part
5842628020 ** Std Part

Toyota Dyna genuine parts
