Front turn signal lamp for Starlet KP60RV

Click on the part subgroup below to get genuine part numbers.

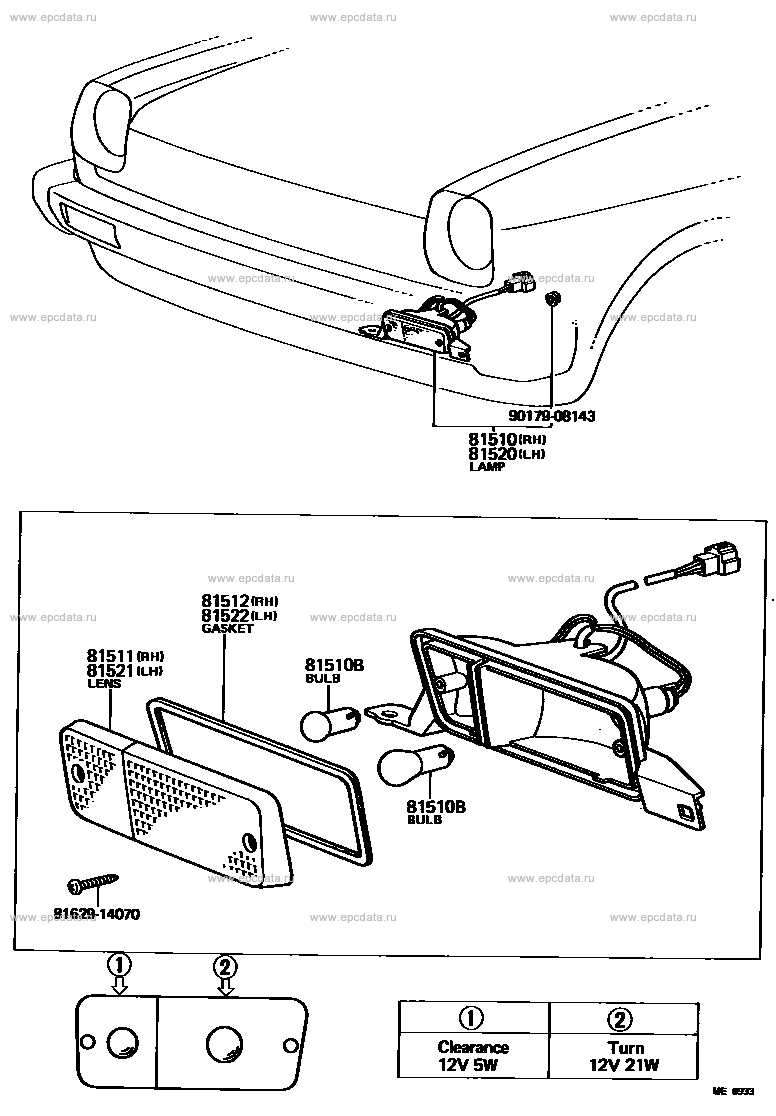

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9017908143 ** Std Part 81510 LAMP ASSY, FRONT TURN SIGNAL, RH 81520 LAMP ASSY, FRONT TURN SIGNAL, LH 81512 GASKET, FRONT TURN SIGNAL LAMP LENS, RH 81522 GASKET, FRONT TURN SIGNAL LAMP LENS, LH 81511 LENS, FRONT TURN SIGNAL LAMP, RH 81510B BULB (FOR FRONT TURN SIGNAL LAMP) 81521 LENS, FRONT TURN SIGNAL LAMP, LH 8162914070 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 81510 LAMP ASSY, FRONT TURN SIGNAL, RH 81520 LAMP ASSY, FRONT TURN SIGNAL, LH 9017906070 ** Std Part 81510B BULB (FOR FRONT TURN SIGNAL LAMP) 81512 GASKET, FRONT TURN SIGNAL LAMP LENS, RH 81522 GASKET, FRONT TURN SIGNAL LAMP LENS, LH 8162914070 ** Std Part 81511 LENS, FRONT TURN SIGNAL LAMP, RH 81521 LENS, FRONT TURN SIGNAL LAMP, LH

Starlet KP60RV
