Crankshaft & piston for Previa TCR11L
Click on the part subgroup below to get genuine part numbers.
|

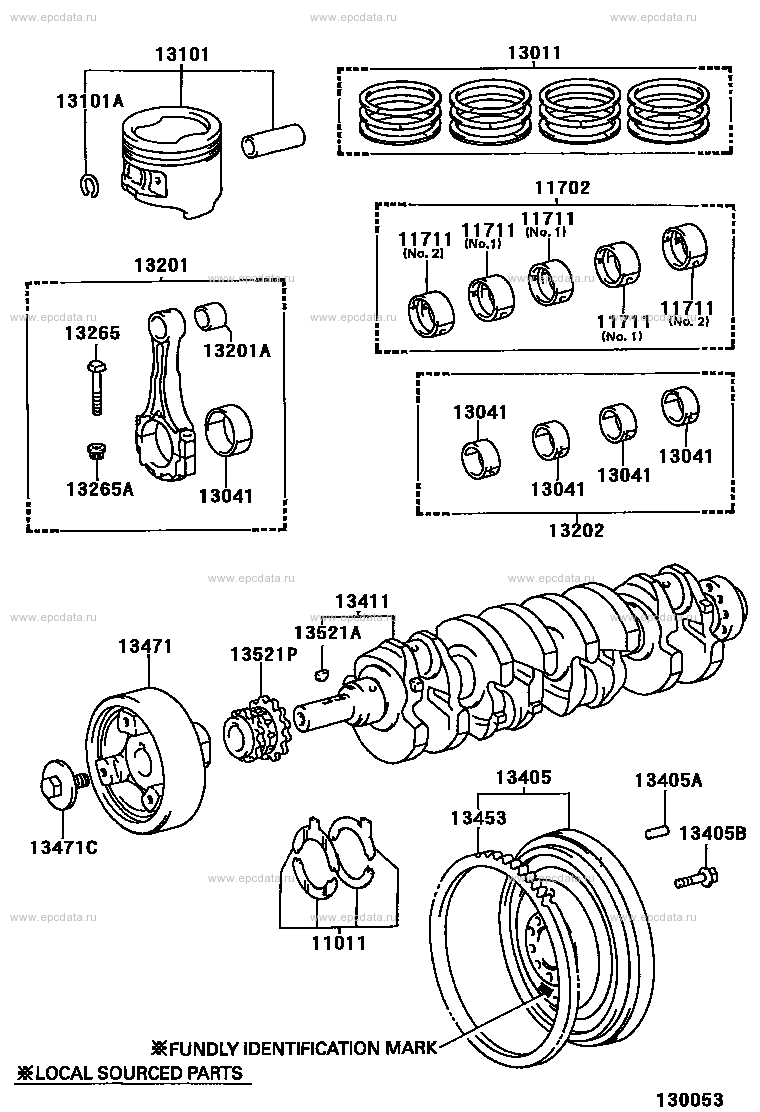

Click part number in the scheme or in the list: 13011 RING SET, PISTON13101 PISTON SUB-ASSY, W/PIN 13101A RING, HOLE SNAP (FOR PISTON PIN) 11702 BEARING SET, CRANKSHAFT 11711 BEARING, CRANKSHAFT 13201 ROD SUB-ASSY, CONNECTING 13265 BOLT, CONNECTING ROD 13201A BUSH (FOR CONNECTING ROD SMALL END) 13041 BEARING, CONNECTING ROD 13265A NUT, HEXAGON (FOR CONNECTING ROD BOLT) 13202 BEARING SET, CONNECTING ROD 13411 CRANKSHAFT 13521A KEY (FOR CRANKSHAFT TIMING GEAR) 13471 PULLEY, CRANKSHAFT 13521P PULLEY, CRANKSHAFT TIMING 13405 FLYWHEEL SUB-ASSY 13405A PIN, STRAIGHT (FOR FLYWHEEL) 13453 GEAR, FLYWHEEL RING 13405B BOLT, FLYWHEEL SET 13471C BOLT (FOR CRANKSHAFT PULLEY SET) 11011 WASHER SET, CRANKSHAFT THRUST |
