Front floor panel & front floor member for Lite Ace Van YR39RV

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 57423 BRACKET, FRONT FLOOR REINFORCEMENT, RH 57417 REINFORCEMENT, FRONT FLOOR UNDER, RH 57424 BRACKET, FRONT FLOOR REINFORCEMENT, LH 57115A PLATE, FRONT SIDE MEMBER, OUTER RH 57418 REINFORCEMENT, FRONT FLOOR UNDER, LH 57116A PLATE, FRONT SIDE MEMBER, OUTER LH 57118 PLATE SUB-ASSY, FRONT SIDE MEMBER FRONT, LH 51431B BRACKET, ENGINE REAR MOUNTING 57119A PLATE, FRONT SIDE MEMBER, FRONT RH 57117 PLATE SUB-ASSY, FRONT SIDE MEMBER FRONT, RH 57129A PLATE, FRONT SIDE MEMBER, FRONT LH 9011908A55 ** Std Part 9095001065 ** Std Part 57218 GUSSET, FRONT SIDE MEMBER, NO.1 57147 PLATE, FRONT SIDE MEMBER, REAR RH 57311 OUTRIGGER, NO.1 RH 57101 MEMBER SUB-ASSY, FRONT SIDE, RH 57219 GUSSET, FRONT SIDE MEMBER, NO.2 57148 PLATE, FRONT SIDE MEMBER, REAR LH 47351C BRACKET, FLEXIBLE HOSE, RH 57102 MEMBER SUB-ASSY, FRONT SIDE, LH 57313 OUTRIGGER, NO.2 RH 57314 OUTRIGGER, NO.2 LH 53776A BRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2 51432 BRACKET, ENGINE REAR MOUNTING, LH 57104A MEMBER SUB-ASSY, FRONT CROSS 57312 OUTRIGGER, NO.1 LH 47352C BRACKET, FLEXIBLE HOSE, LH 51296A BOLT, ENGINE FRONT SUPPORT MEMBER 57209A MEMBER SUB-ASSY, ENGINE REAR MOUNTING 57229A GUSSET, FRONT SIDE MEMBER, NO.2 LH 51025 MEMBER SUB-ASSY, ENGINE FRONT MOUNTING 9461311001 ** Std Part 9011910746 ** Std Part 9165141025 ** Std Part 57218A GUSSET, FRONT SIDE MEMBER, NO.1 LH 9017910076 ** Std Part

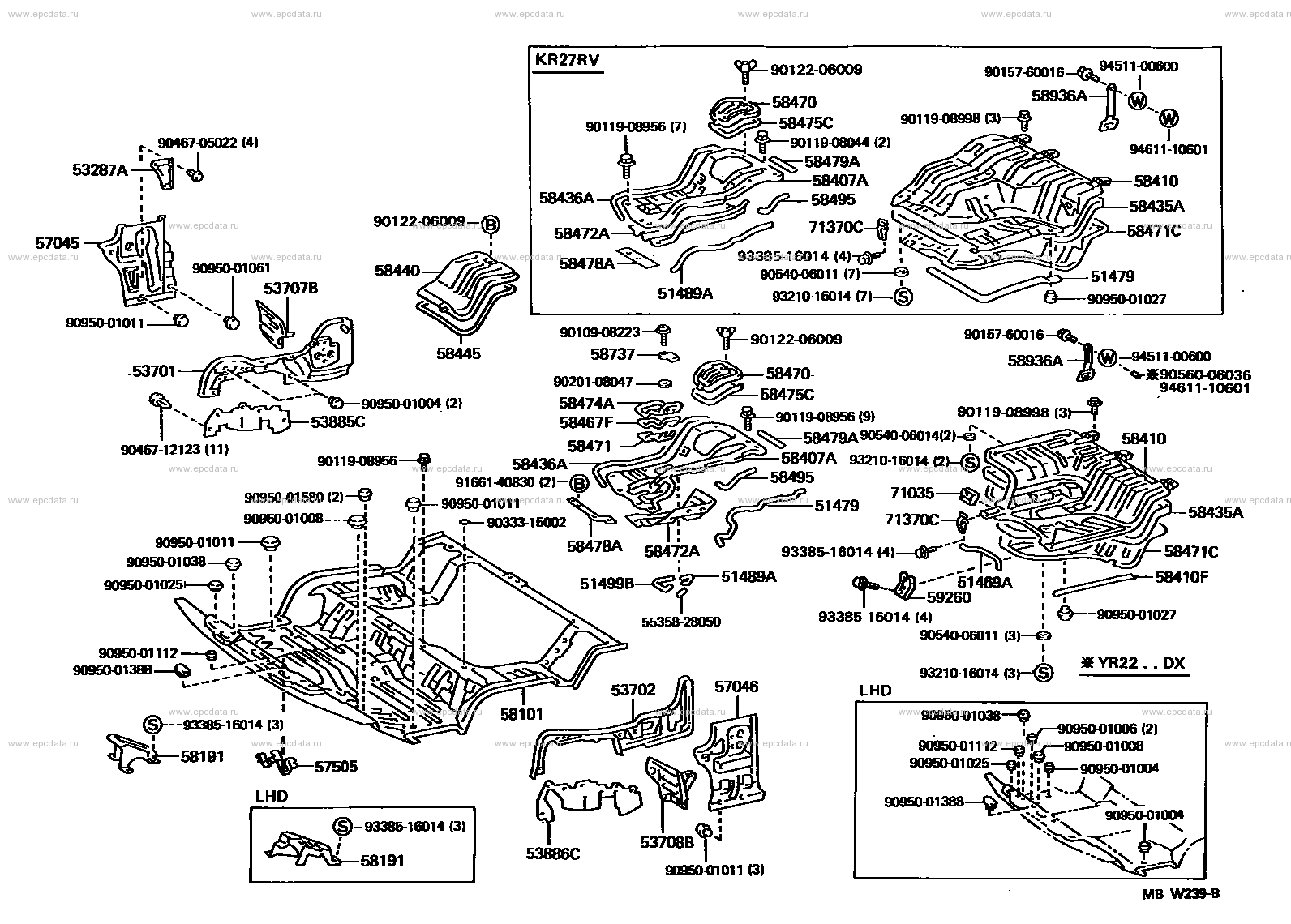

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9451100600 ** Std Part 9012206009 ** Std Part 9015760016 ** Std Part 58936A BAND, ENGINE SERVICE HOLE COVER SUPPORT 58470 COVER ASSY, INSPECTION HOLE 9011908998 ** Std Part 58475C PACKING, ENGIN SUB COVER, NO.3 9011908956 ** Std Part 9046705022 ** Std Part 9011908044 ** Std Part 9461110601 ** Std Part 58479A PACKING, ENGINE SUB COVER, NO.3 53287A COVER, COOLER PIPE HOLE 58407A COVER SUB-ASSY, ENGINE SERVICE HOLE SUB 58410 COVER, ENGINE SERVICE HOLE 58436A PACKING, ENGINE SUB COVER, NO.1 58495 TRIM, INSPECTION HOLE COVER 58435A PACKING, ENGINE MAIN COVER 71370C CATCH ASSY, FR SEAT CUSHION 58471C SILENCER, ENGINE MAIN COVER 58472A SILENCER, ENGINE SUB COVER 57045 PLATE SUB-ASSY, FLOOR SIDE RAIL, RH 9338516014 ** Std Part 58478A PACKING, ENGINE SUB COVER, NO.2 9095001061 ** Std Part 58440 COVER ASSY, BATTERY SERVICE HOLE 9054006011 ** Std Part 51479 TRIM, ENGINE COVER, NO.2 53707B APRON SUB-ASSY, FENDER SIDE, RH 51489A TRIM, ENGINE COVER, NO.3 9321016014 ** Std Part 9095001027 ** Std Part 9095001011 ** Std Part 9010908223 ** Std Part 58445 PACKING, BATTERY SERVICE HOLE COVER 58737 STOPPER, ENGINE SERVICE HOLE COVER 53701 APRON SUB-ASSY, FRONT FENDER, RH 9056006036 ** Std Part 9020108047 ** Std Part 58474A PACKING, ENGINE SUB COVER, NO.2 9095001004 ** Std Part 53885C SEAL, FENDER APRON MUDGUARD, RH 58467F PACKING, INSPECTION HOLE 9054006014 ** Std Part 58471 COVER, SEAT FLOOR SERVICE HOLE 9046712123 ** Std Part 9166140830 ** Std Part 71035 CUSHION SUB-ASSY, SEAT STOPPER 9095001580 ** Std Part 9095001008 ** Std Part 9033315002 ** Std Part 9095001038 ** Std Part 58410F TRIM, ENGINE SERVICE HOLE COVER 51469A TRIM, ENGINE COVER, NO.1 51499B TRIM, ENGINE COVER, NO.4 9095001025 ** Std Part 59260 LOCK ASSY, ENGINE COVER 5535828050 ** Std Part 9095001112 ** Std Part 9095001388 ** Std Part 57046 PLATE SUB-ASSY, FLOOR SIDE RAIL, LH 53702 APRON SUB-ASSY, FRONT FENDER, LH 58101 PAN SUB-ASSY, FRONT FLOOR 9095001006 ** Std Part 58191 FOOTREST, FRONT FLOOR 57505 BRACKET SUB-ASSY, PARKING BRAKE, NO.1 53708B APRON SUB-ASSY, FENDER SIDE, LH 53886C SEAL, FENDER APRON MUDGUARD, LH

Lite Ace Van YR39RV
