ToyotaLand CruiserLJ72LLJ72L-KRTransmission and chassisRear axle housing & differential

Rear axle housing & differential for Land Cruiser LJ72L




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 41331
(IRRG)		 41331-35040 01 01.1990 - 05.1993 GEAR, REAR DIFFERENTIAL SIDE LJ7#,RJ7#
W(DIFFERENTIAL LOCK),RH		  63.20
to 291.63 USD
02 41331
(IRRG)		 41331-35040 02 01.1990 - 05.1993 GEAR, REAR DIFFERENTIAL SIDE LJ7#,RJ7#
  63.20
to 291.63 USD
03 41331 41331-60040 01 01.1990 - 05.1993 GEAR, REAR DIFFERENTIAL SIDE LJ7#,RJ7#
W(DIFFERENTIAL LOCK),LH		  275.89
to 291.63 USD
  (SUBS) 41039-34060 01
04 41331 41331-35030 02 01.1990 - 05.1993 GEAR, REAR DIFFERENTIAL SIDE LJ7#,RJ7#
W(LSD)		  47.24
to 243.95 USD
  (SUBS) 41039-34070 02

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3 Scheme 4

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Click part number in the scheme or in the list:

9011908701 ** Std Part
41991 CAUTION PLATE, REAR DIFFERENTIAL
42306F PLUG, BREATHER (FOR REAR AXLE)
42306D CLAMP (FOR REAR AXLE BRATHER HOSE)
42306 HOSE SUB-ASSY, REAR AXLE BREATHER
42306B HOSE (FOR REAR AXLE BREATHER)
42306C CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)
42110 HOUSING ASSY, REAR AXLE
42306A UNION (FOR REAR AXLE BREATHER HOUSE)
42110B GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110A PLUG (FOR REAR AXLE HOUSING FILLER)
9017008204 ** Std Part
42110D GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
41110A BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
42181 GASKET, REAR DIFFERENTIAL CARRIER
42110E PLUG (FOR REAR AXLE HOUSING DRAIN)
9451200800 ** Std Part
04412 GASKET KIT, REAR DIFFERENTIAL CARRIER

Scheme 2

Click part number in the scheme or in the list:

41351 WASHER, REAR DIFFERENTIAL PINION THRUST
41341 PINION, REAR DIFFERENTIAL
41331 GEAR, REAR DIFFERENTIAL SIDE
41110 CARRIER ASSY, DIFFERENTIAL, REAR
41361 WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST NO.1
41371 SPIDER, REAR DIFFERENTIAL
41302 CASE SUB-ASSY, REAR DIFFERENTIAL
41315 NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41302A BOLT (FOR REAR DIFFERENTIAL CASE)
41301A BEARING (FOR REAR DIFFERENTIAL CASE)
41222 PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41201A BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR)
41201D WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41222A BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
9161160814 ** Std Part
41316 LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41201B BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT)
41201C SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41204H WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)
41114 BOLT, REAR DIFFERENTIAL BEARING CAP
41231 SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41115 RING, DIFFERENTIAL OIL STORAGE
41214 SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41101 CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41252 DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41204G NUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41204 FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41201 FINAL GEAR KIT, DIFFERENTIAL, REAR

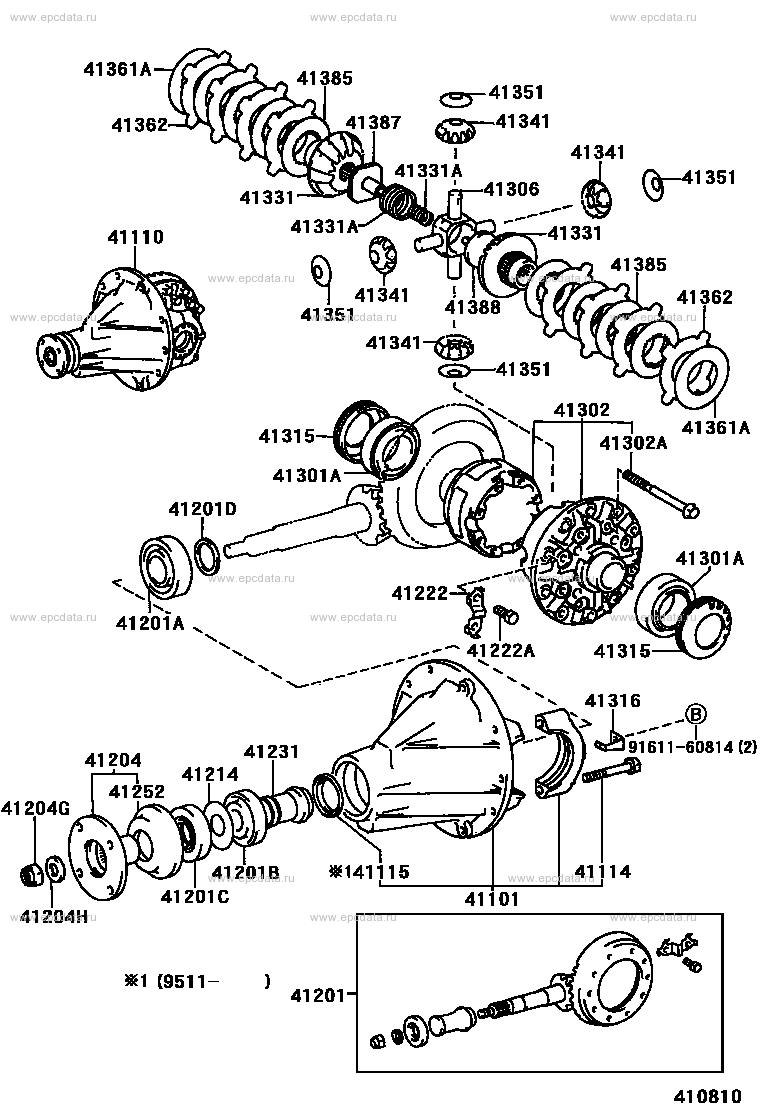

Scheme 3

Click part number in the scheme or in the list:

41361A SHIM (FOR REAR DIFFERENTIAL SIDE GEAR THRUST)
41385 PLATE, CLUTCH
41351 WASHER, REAR DIFFERENTIAL PINION THRUST
41341 PINION, REAR DIFFERENTIAL
41387 RETAINER, SPRING, RH
41362 WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2
41331A SPRING,COMPRESSION
41306 SPIDER SUB-ASSY, FRONT DIFFERENTIAL
41331 GEAR, REAR DIFFERENTIAL SIDE
41110 CARRIER ASSY, DIFFERENTIAL, REAR
41388 RETAINER, SPRING, LH
41302 CASE SUB-ASSY, REAR DIFFERENTIAL
41315 NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41302A BOLT (FOR REAR DIFFERENTIAL CASE)
41301A BEARING (FOR REAR DIFFERENTIAL CASE)
41201D WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41222 PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41201A BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR)
41222A BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41316 LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
9161160814 ** Std Part
41231 SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41204 FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41214 SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41252 DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41204G NUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41114 BOLT, REAR DIFFERENTIAL BEARING CAP
41115 RING, DIFFERENTIAL OIL STORAGE
41201B BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT)
41201C SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41101 CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41204H WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)
41201 FINAL GEAR KIT, DIFFERENTIAL, REAR

Scheme 4

Click part number in the scheme or in the list:

41507 TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER
41201 FINAL GEAR KIT, DIFFERENTIAL, REAR
41351 WASHER, REAR DIFFERENTIAL PINION THRUST
41110 CARRIER ASSY, DIFFERENTIAL, REAR
41341 PINION, REAR DIFFERENTIAL
41361 WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST NO.1
41331 GEAR, REAR DIFFERENTIAL SIDE
41301A BEARING (FOR REAR DIFFERENTIAL CASE)
41371 SPIDER, REAR DIFFERENTIAL
41315 NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41201D WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41201A BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR)
41231 SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41222 PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
9161160814 ** Std Part
41311K CASE, REAR DIFFERENTIAL
41316 LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41222A BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41465D PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER)
33275L SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING
** 84-01
41465B SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINER)
41460J BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER)
41201B BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT)
41204H WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)
41114 BOLT, REAR DIFFERENTIAL BEARING CAP
41115 RING, DIFFERENTIAL OIL STORAGE
41214 SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41201C SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41101 CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41252 DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41462K SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK
41204G NUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41204 FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41453 SLEEVE, REAR DIFFERENTIAL LOCK
41442 BOLT OR PIN, SHIFT FORK LOCK
41451 FORK, REAR DIFFERENTIAL LOCK SHIFT
41450C RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR)
41469A RETAINER, REAR DIFFERENTIAL LOCK SHAFT
9010508214 ** Std Part
9010508050 ** Std Part
41450 ACTUATOR, DIFFERENTIAL LOCK SHIFT
