Power steering tube for Land Cruiser HJ60LG
Click on the part subgroup below to get genuine part numbers.

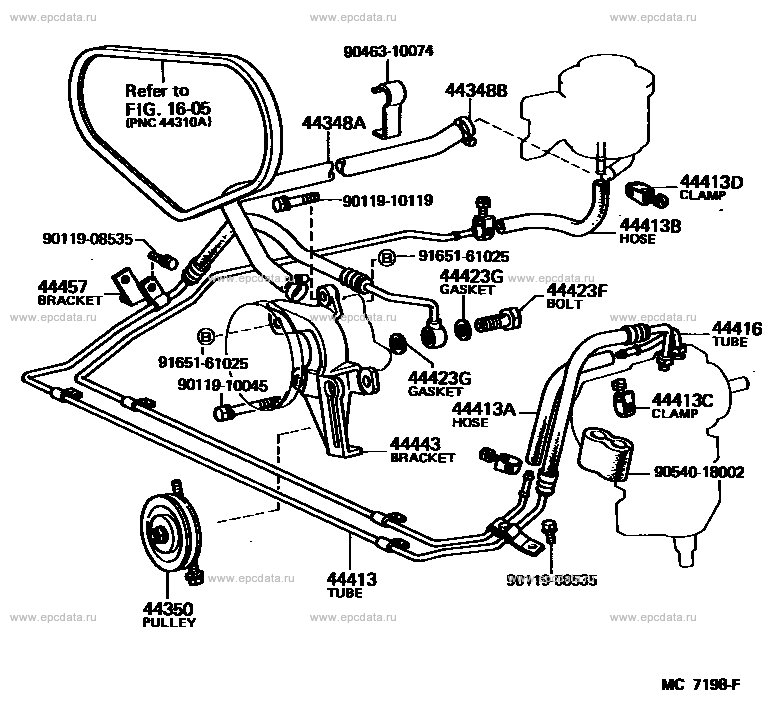

Scheme 1
|
Click part number in the scheme or in the list: 9046310074 ** Std Part44348B CLAMP (FOR OIL RESERVOIR TO PUMP HOSE) ** 16-05 44348A HOSE, OIL RESERVOIR TO PUMP, NO.1 44413D CLAMP (FOR RESERVOIR TANK INLET HOSE) 9011910119 ** Std Part 44413B HOSE (FOR RESERVOIR TANK INLET) 9011908535 ** Std Part 9165161025 ** Std Part 44423G GASKET, UNION BOLT 44457 BRACKET, TUBE SUPPORT, NO.1 44423F BOLT, UNION 44416 TUBE, RETURN (FOR STEERING GEAR OUTLET) 9011910045 ** Std Part 44413C CLAMP (FOR RETURN TUBE OUTLET HOSE) 44413A HOSE (FOR RETURN TUBE OUTLET) 44443 BRACKET, PUMP 9054018002 ** Std Part 44413 TUBE, PRESSURE FEED, NO.1 44350 PULLEY ASSY, POWER STEERING IDLE |

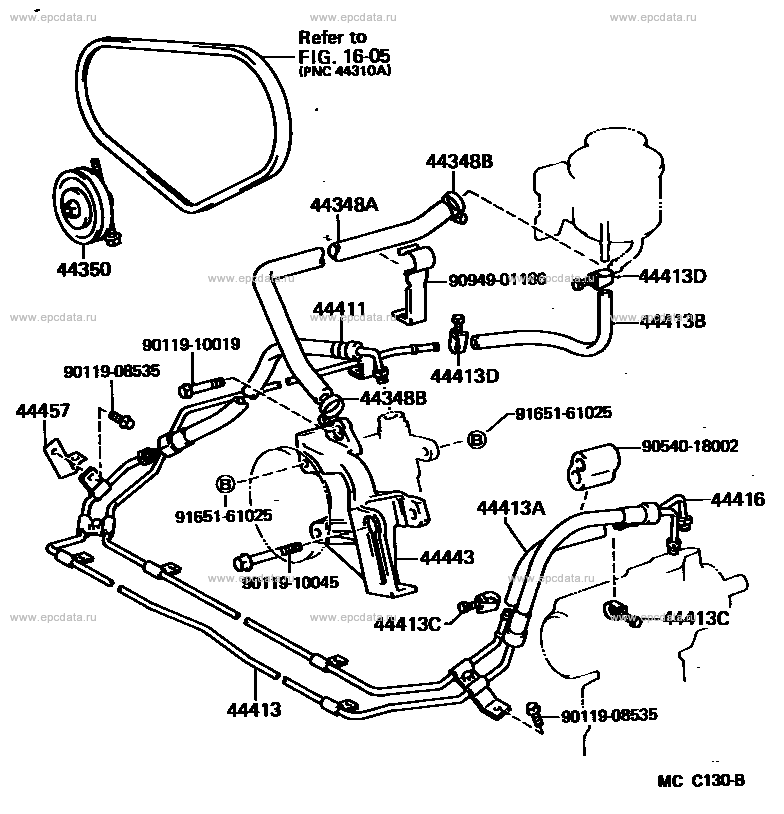

Scheme 2
|
Click part number in the scheme or in the list: ** 16-0544348B CLAMP (FOR OIL RESERVOIR TO PUMP HOSE) 44348A HOSE, OIL RESERVOIR TO PUMP, NO.1 44350 PULLEY ASSY, POWER STEERING IDLE 44413D CLAMP (FOR RESERVOIR TANK INLET HOSE) 9094901186 ** Std Part 44411 HOSE, PRESSURE FEED 44413B HOSE (FOR RESERVOIR TANK INLET) 9011910019 ** Std Part 9011908535 ** Std Part 44457 BRACKET, TUBE SUPPORT, NO.1 9165161025 ** Std Part 9054018002 ** Std Part 44416 TUBE, RETURN (FOR STEERING GEAR OUTLET) 44413A HOSE (FOR RETURN TUBE OUTLET) 44443 BRACKET, PUMP 9011910045 ** Std Part 44413C CLAMP (FOR RETURN TUBE OUTLET HOSE) 44413 TUBE, PRESSURE FEED, NO.1 |
Scheme 3
