Winch for Land Cruiser FJ75LV
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| ||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

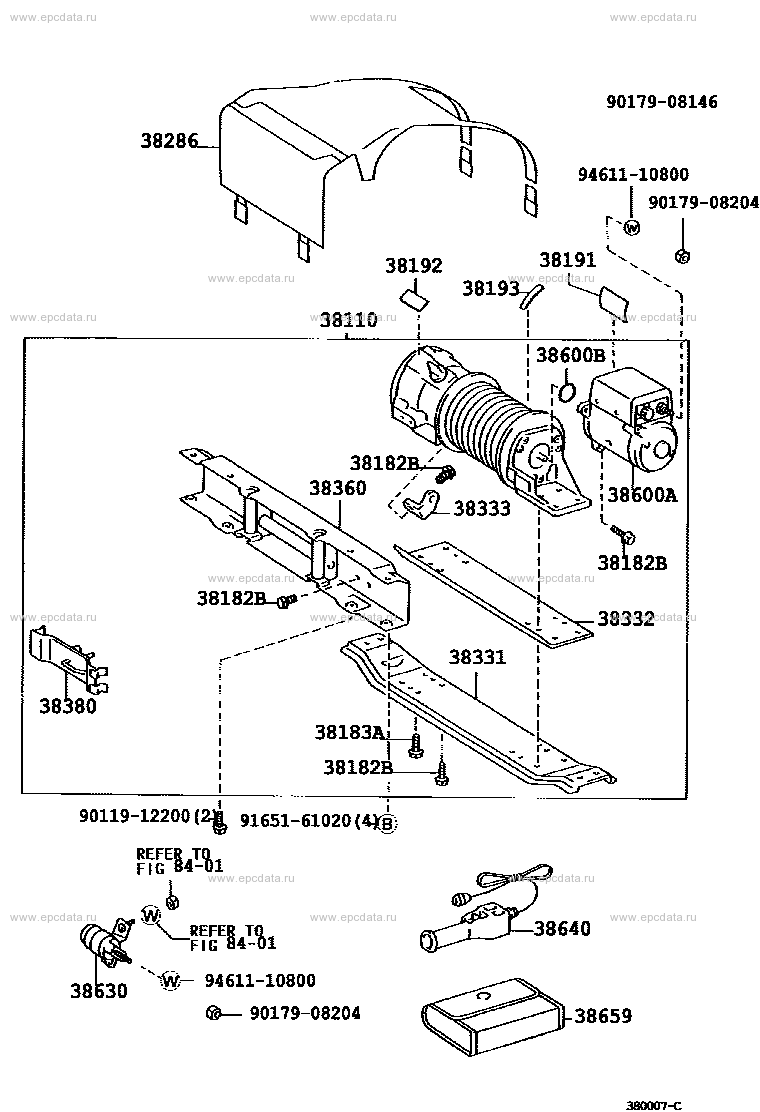

Scheme 1

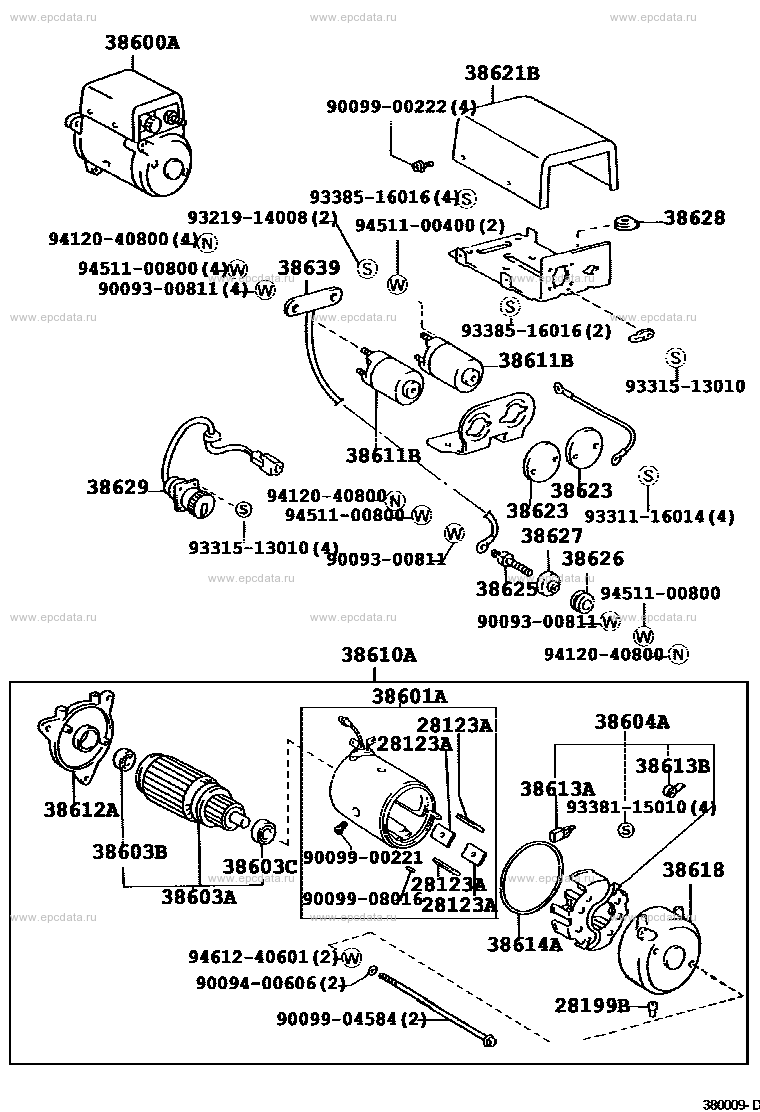

Scheme 2
|
Click part number in the scheme or in the list: 38286 COVER, WINCH38193 PLATE, WINCH CAUTION, NO.3 38110 WINCH ASSY 38191 PLATE, WINCH CAUTION, NO.1 38600B RING, O (FOR WINCH MOTOR) 9461110800 ** Std Part 9017908146 ** Std Part 38600A MOTOR ASSY, W/MAGNET SWITCH, WINCH 38182B BOLT, WINCH, NO.1 38332 BASE, WINCH, NO.2 38333 SPACER, MEMBER, NO.1 38360 BRACKET ASSY, WINCH ROLLER 38380 HOLDER ASSY, WINCH HOOK 38183A BOLT, WINCH, NO.2 38331 BASE, WINCH, NO.1 38640 SWITCH ASSY, WINCH CONTROL 38659 COVER, WINCH CONTROL SWITCH 9165161020 ** Std Part 9011912200 ** Std Part 38630 SWITCH ASSY, MAGNET, NO.1 ** 84-01 38192 PLATE, WINCH CAUTION, NO.2 9017908204 ** Std Part |

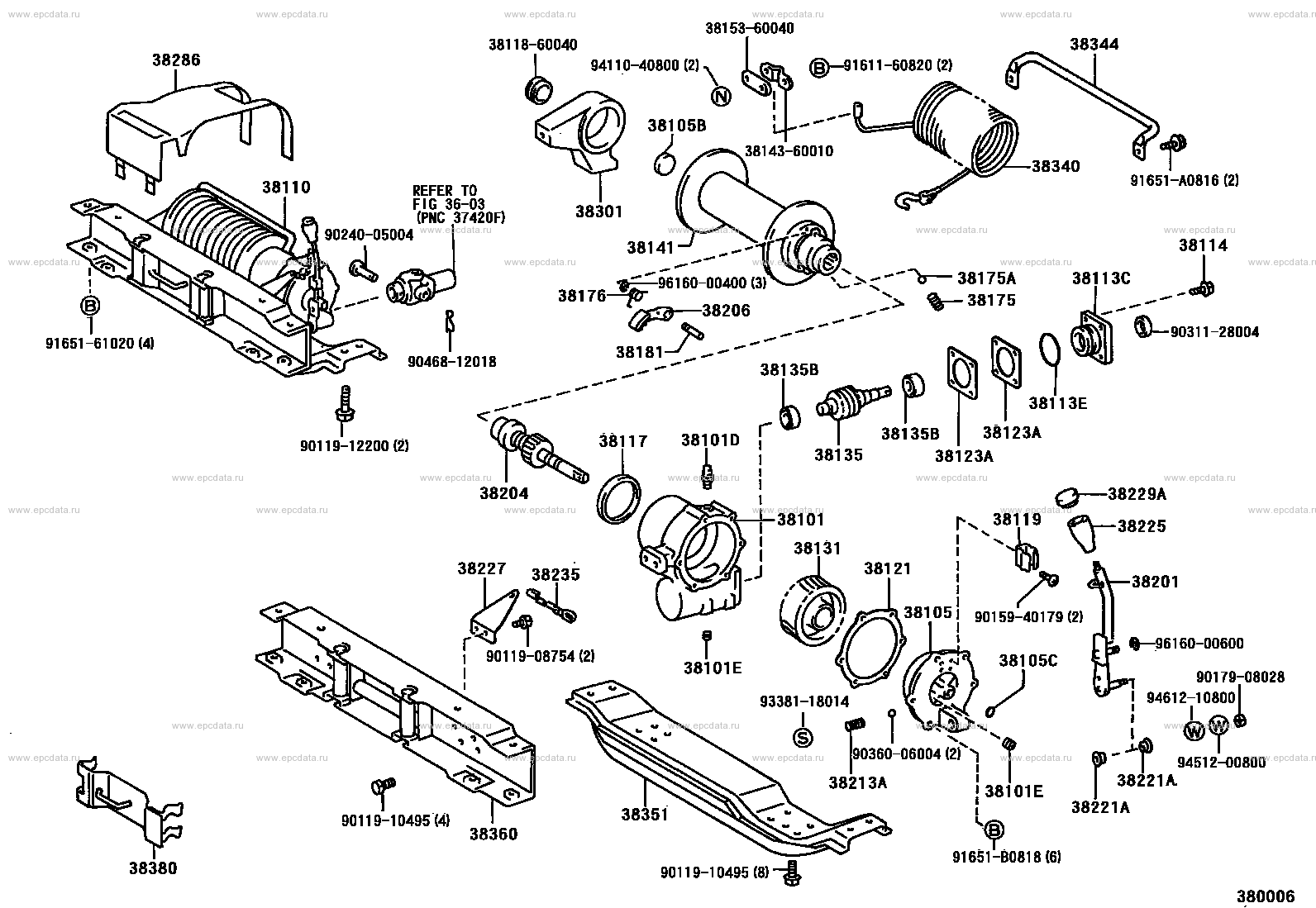

Scheme 3
Scheme 4
