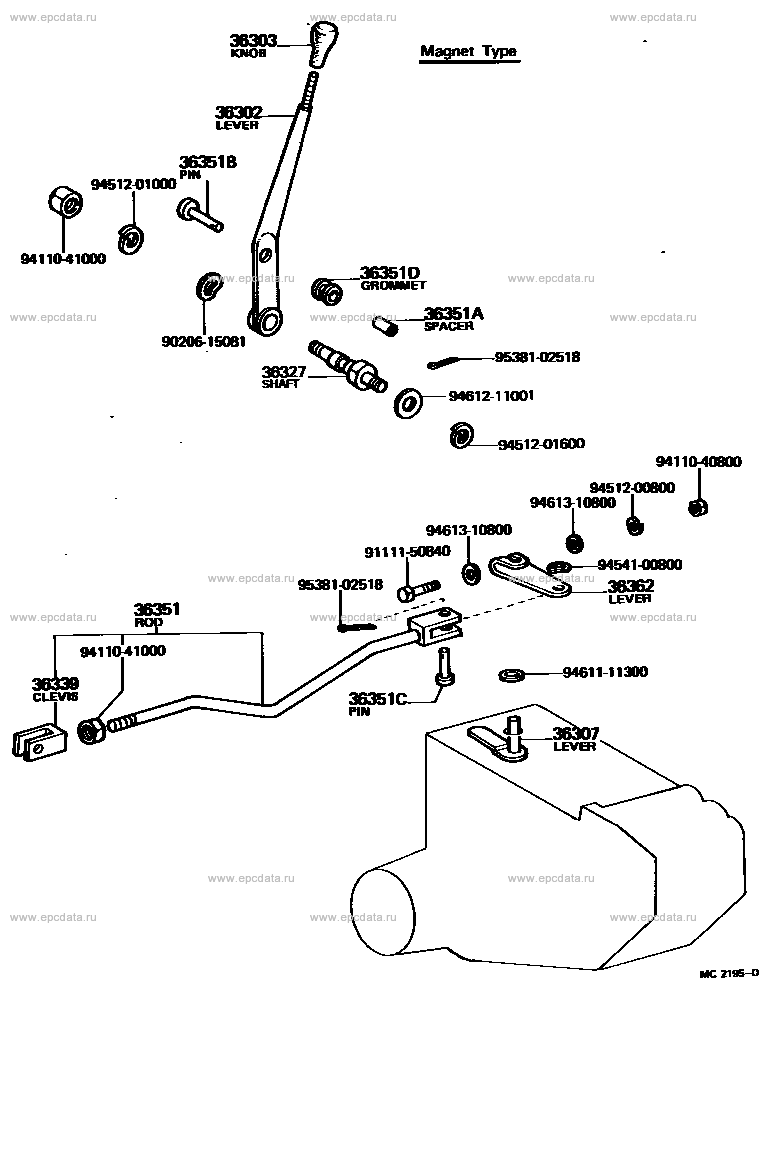

Click part number in the scheme or in the list:
9411040800 ** Std Part
9461310800 ** Std Part
36303 KNOB SUB-ASSY, SHIFT LEVER
9111150840 ** Std Part
36353 ROD, HIGH & LOW SHIFT, NO.3
9451200800 ** Std Part
36362 LEVER, TRANSFER HIGH AND LOW SHIFT OUTER
36321 LEVER, TRANSFER FRONT DRIVE SHIFT
9454100800 ** Std Part
9461111300 ** Std Part
9461110800 ** Std Part
9538102015 ** Std Part
36351 ROD, HIGH & LOW SHIFT, NO.1
36307 LEVER SUB-ASSY, HIGH & LOW SHIFT INNER
9538103025 ** Std Part
36323 GUIDE, TRANSFER SHIFT LEVER
36357 LEVER SUB-ASSY, HIGH & LOW SHIFT LINK
36365 SHAFT, LINK SUPPORT
9538102025 ** Std Part
36314A RING, O (FOR TRANSFER SHIFT FORK SHAFT)
36312A BALL, GEAR SHIFT FORK LOCK
36312C PLUG, STRAIGHT SCREW (FOR TRANSFER SHIFT FORK)
9451201000 ** Std Part
36312B SPRING, COMPRESSION (FOR SHIFT FORK LOCK)
36334 PIN, SHIFT LEVER, NO.1
36314 SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36312 FORK, TRANSFER GEAR SHIFT, NO.2
36335 PIN, SHIFT LEVER, NO.2
9161140816 ** Std Part
9411041000 ** Std Part
36314F PLATE, LOCK (FOR TRANSFER HIGH & LOW SHIFT FORK SHAFT)
9161140855 ** Std Part
36341 SHAFT, FRONT DRIVE SHIFT LINK SUPPORT
36343 SHOE, FRONT DRIVE SHIFT LINK LEVER (FOR DIRECT TYPE)
9645100600 ** Std Part
9451201200 ** Std Part
36305 LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK
36161A PLUG, TRANSFER FRONT DRIVE SHIFT SHAFT GUIDE
36313A BOLT, LOCK (FOR TRANSFER FRONT DRIVE SHIFT SHAFT LOCK)
36161B GASKET, TRANSFER FRONT DRIVE SHIFT SHAFT GUIDE
36313C SPRING, SHIFT FORK LOCK
36313D BALL, SHIFT FORK LOCK
36313B GASKET, SHIFT FORK LOCK BOLT
36150 GUIDE ASSY, TRANSFER FRONT DRIVE SHIFT SHAFT
36318 BOOT, TRANSFER FRONT DRIVE SHIFT
36313 SHAFT, TRANSFER FRONT DRIVE SHIFT
36313E RING, O (FOR SHIFT FORK SHAFT)
36315 PIN, TRANSFER FORK SHAFT
36313G SEAL, DUST (FOR SHIFT FORK SHAFT)
36311 FORK, TRANSFER GEAR SHIFT, NO.1 |
