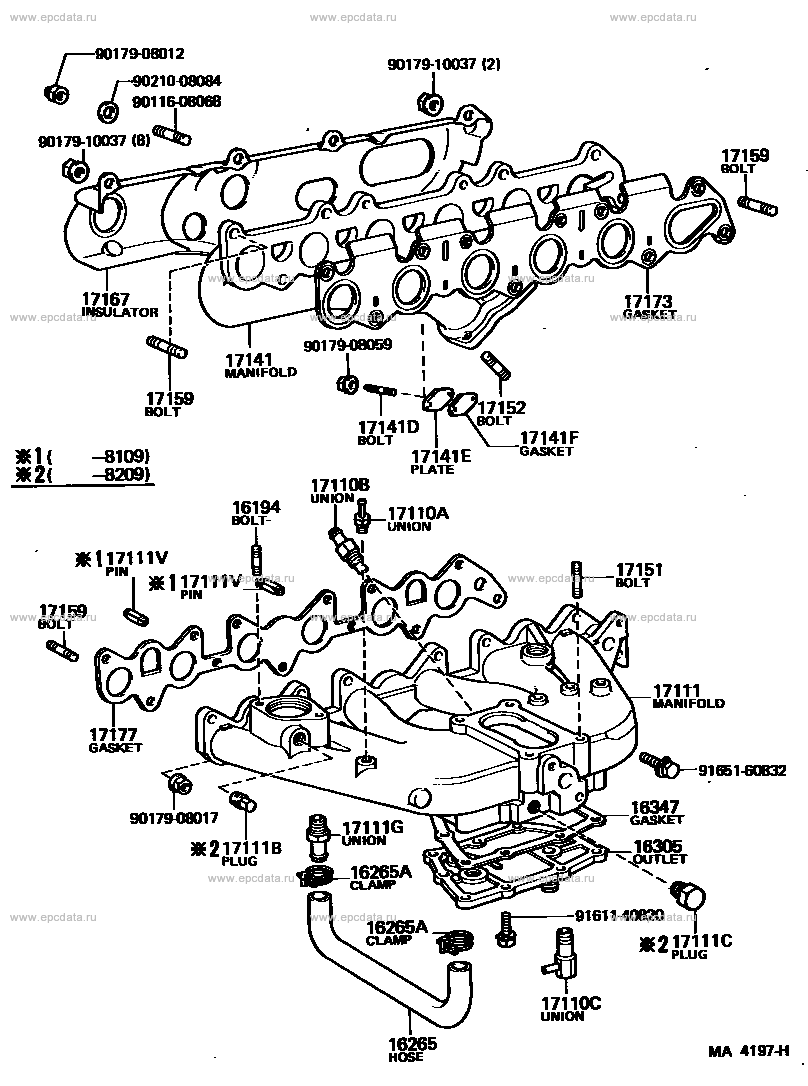

Click part number in the scheme or in the list:
9017908012 ** Std Part
9017910037 ** Std Part
9021008084 ** Std Part
9011608068 ** Std Part
17159 BOLT, STUD (FOR MANIFOLD TO CYLINDER HEAD)
17167 INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173 GASKET, EXHAUST MANIFOLD TO HEAD
9017908059 ** Std Part
17141 MANIFOLD, EXHAUST
17152 BOLT, STUD (FOR MANIFOLD TO EXHAUST PIPE)
17141D BOLT, STUD (FOR O2 SENSOR)
17141F GASKET (FOR EXHAUST MANIFOLD PLATE)
17141E PLATE, EXHAUST MANIFOLD
17110B UNION (FOR VENTILATION HOSE TO MANIFOLD)
16194 BOLT, STUD (FOR WATER OUTLET SETTING)
17110A UNION, VACUUM HOSE
17111V PIN, STRAIGHT (FOR INTAKE MANIFOLD SETTING)
17151 BOLT, STUD (FOR MANIFOLD TO CARBURETOR)
17111 MANIFOLD, INTAKE
17177 GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9165160832 ** Std Part
16347 GASKET, WATER BY-PASS
9017908017 ** Std Part
17111G UNION (FOR INTAKE MANIFOLD WATER)
16305 OUTLET SUB-ASSY, WATER BY-PASS
17111B PLUG, NO.2
16265A CLAMP OR CLIP, HOSE (FOR INTAKE MANIFOLD WATER)
9161140820 ** Std Part
17111C PLUG, NO.3
17110C UNION(FOR AIR CLEANER TO MANIFOLD)
16265 HOSE, INTAKE MANIFOLD WATER |
