Switch & relay for Crown LS130R
Click on the part subgroup below to get genuine part numbers.
Scheme 1
Scheme 2
|
Click part number in the scheme or in the list: 89438 SWITCH, POWER STEERING OIL PRESSURE82661 COVER, RELAY BLOCK, NO.1 86530 RELAY ASSY, HORN 82600F FUSE,FUSE BLOCK 89620 IGNITER ASSY 82616 PULLER, FUSE 28300 RELAY ASSY, STARTER 89421B SENSOR, VACUUM 83390 SWITCH ASSY, VACUUM WARNING 84230 SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) ** 84-04 28610A RELAY ASSY, GLOW PLUG (SUB) 9011908063 ** Std Part 9165160614 ** Std Part 85916P RELAY, HEADLAMP 82660C BLOCK ASSY, RELAY 89629 BRACKET, IGNITER ASSY 9011908375 ** Std Part 88630Y RELAY, REAR COOLER 85999C BRACKET, RELAY, NO.3 9165160814 ** Std Part 9163540818 ** Std Part 9165660814 ** Std Part 88630G RELAY ASSY, COOLER 85927 RELAY, COOLING FAN 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) 85912 RELAY, DEFOGGER 2334454010 ** Std Part ** 23-02 85915 RELAY, MAIN 2332264010 ** Std Part ** 82-02 9046400073 ** Std Part ** 19-01 |
Scheme 3
|
Click part number in the scheme or in the list: 84790B BULB (FOR REAR WINDOW DEFOGGER SWITCH)84790 SWITCH ASSY, REAR WINDOW DEFOGGER 84870A SWITCH ASSY, OUTER MIRROR 84249 SWITCH, MAP LAMP 84930 SWITCH ASSY, DOOR CONTROL 84730D CAP, HEATER BLOWER SWITCH BULB 84731 KNOB, HEATER BLOWER SWITCH 84730 SWITCH ASSY, HEATER BLOWER 8473120040 ** Std Part 84730B BULB, HEATER BLOWER SWITCH 84730A NUT, HEATER BLOWER SWITCH 85500B BULB, CIGARETTE LIGHTER 85500F CAP, CIGARETTE LIGHTER BULB 85533 LENS, CIGARETTE LIGHTER INDICATOR 85513 COVER, CIGARETTE LIGHTER 85500 LIGHTER ASSY, CIGARETTE 84840 SWITCH ASSY, LUGGAGE DOOR OPENING 84242 SWITCH, GLOVE BOX LAMP 84162 SWITCH, FRONT FOG LAMP 82285C WIRE, ILLUMINATION, NO.2 |
Scheme 4
|
Click part number in the scheme or in the list: 87989 RELAY, MIRROR CONTROL85980 RELAY ASSY, DOOR CONTROL 85900 RELAY ASSY, CONTROL UNIT 85940 RELAY ASSY, WINDSHIELD WIPER 9163260612 ** Std Part 9356755014 ** Std Part 9011906005 ** Std Part 85961 RELAY, HEADLAMP RETAINER 89230 COMPUTER ASSY, TILT STEERING 9011906061 ** Std Part 85999R BRACKET, RELAY, NO.6 88291A BRACKET, SPEED CONTROL, A 85999D BRACKET, RELAY, NO.4 89650 COMPUTER ASSY, POWER STEERING 84340 SWITCH ASSY, STOP LAMP 82641 RELAY, INTEGRATION 9163560616 ** Std Part 82650 BREAKER ASSY, WIRING CIRCUIT, NO.1 85985 RELAY, KEY REMINDER 85916N RELAY, TAIL LAMP 9165160618 ** Std Part 85930 RELAY ASSY, POWER WINDOW 9162140620 ** Std Part 85916D RELAY, FOG LAMP 82671D BLOCK, JUNCTION 81980 FLASHER ASSY, TURN SIGNAL 88630G RELAY ASSY, COOLER 82600F FUSE,FUSE BLOCK 85916F RELAY, CORNERING LAMP 85916 RELAY, LIGHT CONTROL |

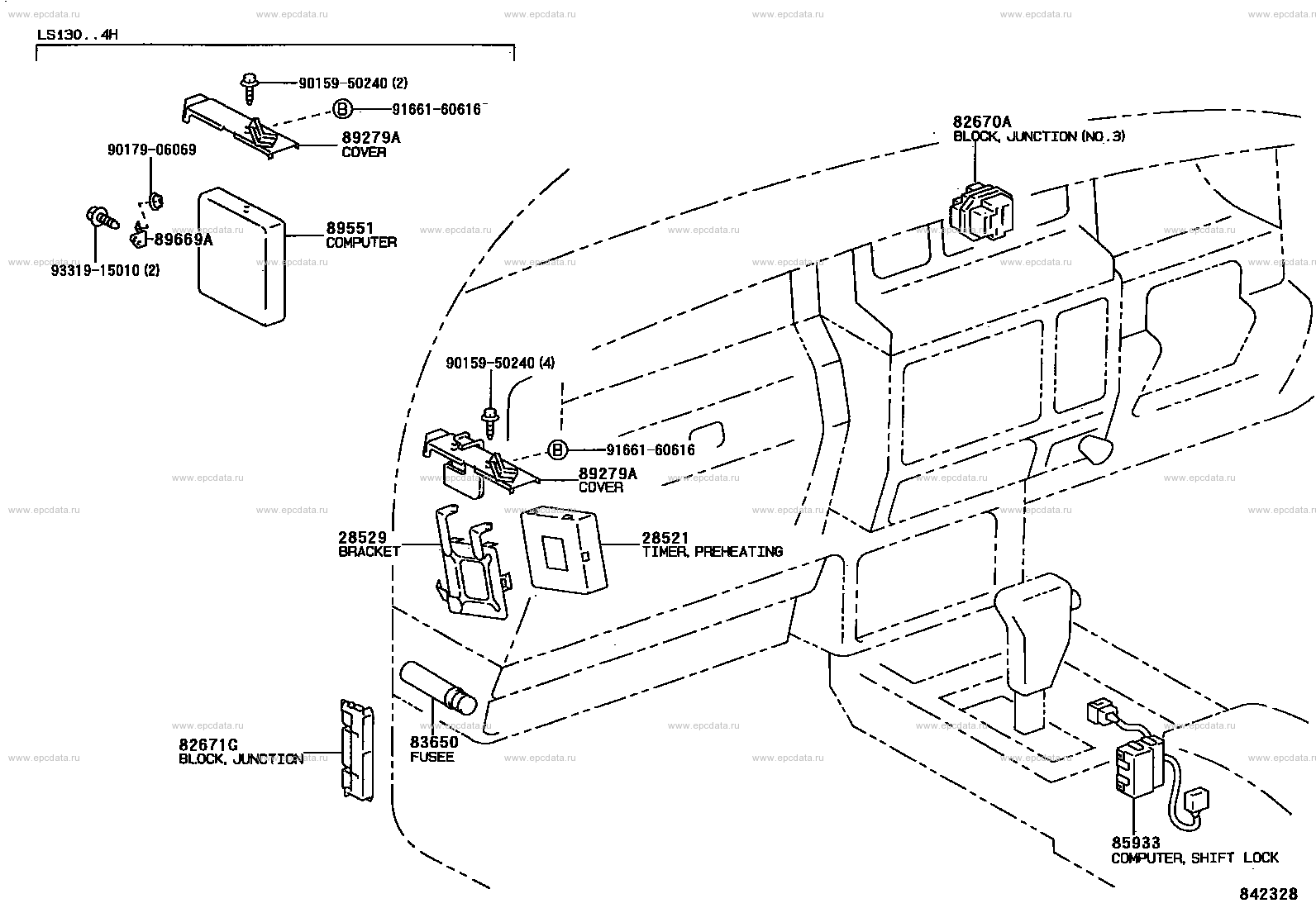

Scheme 5
|
Click part number in the scheme or in the list: 9015950240 ** Std Part9166160616 ** Std Part 82670A BLOCK ASSY, JUNCTION, NO.1 89279A COVER, COMPUTER 9017906069 ** Std Part 89551 COMPUTER, EMISSION CONTROL 89669A BRACKET, ENGINE CONTROL COMPUTER, NO.4 9331915010 ** Std Part 28529 BRACKET, PREHEATING TIMER, NO.1 28521 TIMER, PREHEATING 83650 FUSEE 82671G BLOCK, JUNCTION 85933 COMPUTER, SHIFT LOCK CONTROL |
Scheme 6
|
Click part number in the scheme or in the list: 84727 SWITCH, SHIFT LOCK CONTROL9046400551 ** Std Part 9331914012 ** Std Part 84450 SWITCH ASSY, IGNITION OR STARTER 9331514010 ** Std Part 9331913008 ** Std Part 85432 SOLENOID, KEY INTER LOCK 89235 SWITCH, TILT STEERING 85431 SOLENOID, SHIFT LOCK 85933 COMPUTER, SHIFT LOCK CONTROL 9046312570 ** Std Part 9046315003 ** Std Part 8271120290 ** Std Part 84310 SWITCH ASSY, TURN SIGNAL 84140 SWITCH ASSY, HEADLAMP DIMMER 84329 SWITCH, TURN SIGNAL 84110 SWITCH ASSY, LIGHT CONTROL, NO.1 84650 SWITCH ASSY, WINDSHIELD WIPER 84317 SENSOR, STEERING POSITION 84312 PLATE, HORN CONTACT 84315 SLIPRING, HORN CONTACT 9331915012 ** Std Part |
Scheme 7
Scheme 8
|
Click part number in the scheme or in the list: 84810D SWITCH ASSY, POWER WINDOW REGULATOR, REAR84923 SWITCH, REAR POWER SEAT 83320 GAGE ASSY, FUEL SENDER 83361 GASKET, FUEL SENDER GAGE 9331914010 ** Std Part 9331515010 ** Std Part 9326915008 ** Std Part 84236 SWITCH ASSY, COURTESY LAMP (FOR LUGGAGE COMPARTMENT ROOM) |
