Mounting for Corolla KE70L

Click on the part subgroup below to get genuine part numbers.

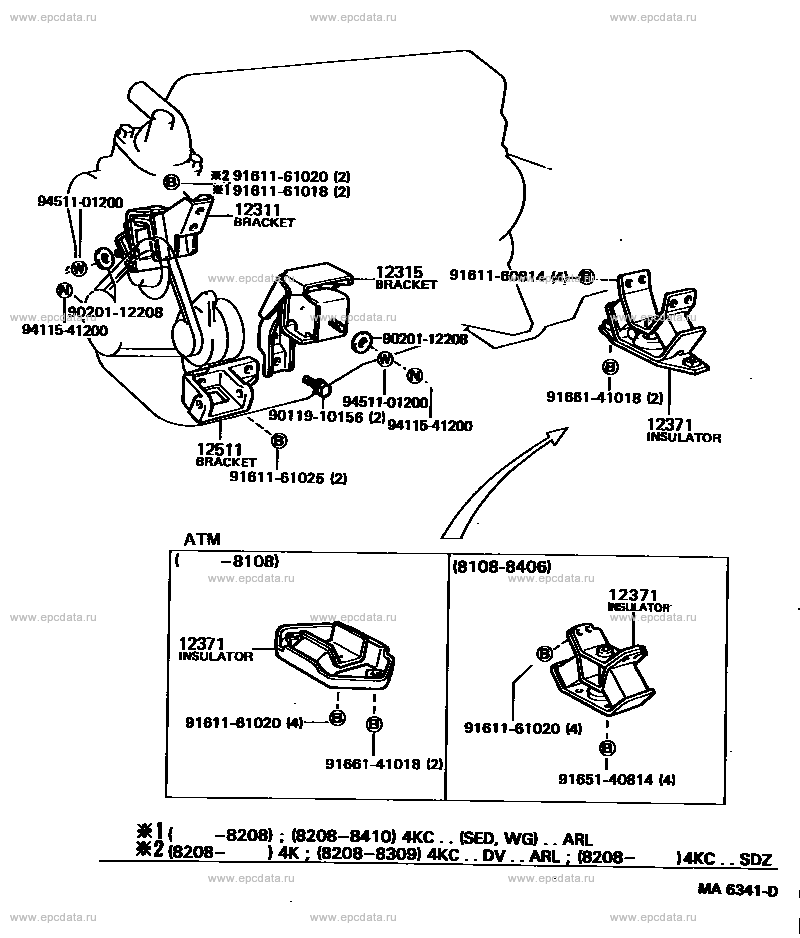

Open full size scheme

Click part number in the scheme or in the list: 9161161020 ** Std Part 9161161018 ** Std Part 9451101200 ** Std Part 12311 BRACKET, ENGINE MOUNTING, FRONT NO.1 RH 12315 BRACKET, ENGINE MOUNTING, FRONT NO.1 LH 9161160814 ** Std Part 9020112208 ** Std Part 9411541200 ** Std Part 9166141018 ** Std Part 9011910156 ** Std Part 12371 INSULATOR, ENGINE MOUNTING, REAR NO.1 12511 BRACKET, ALTERNATOR, NO.1 9161161025 ** Std Part 9165140814 ** Std Part

Corolla KE70L
