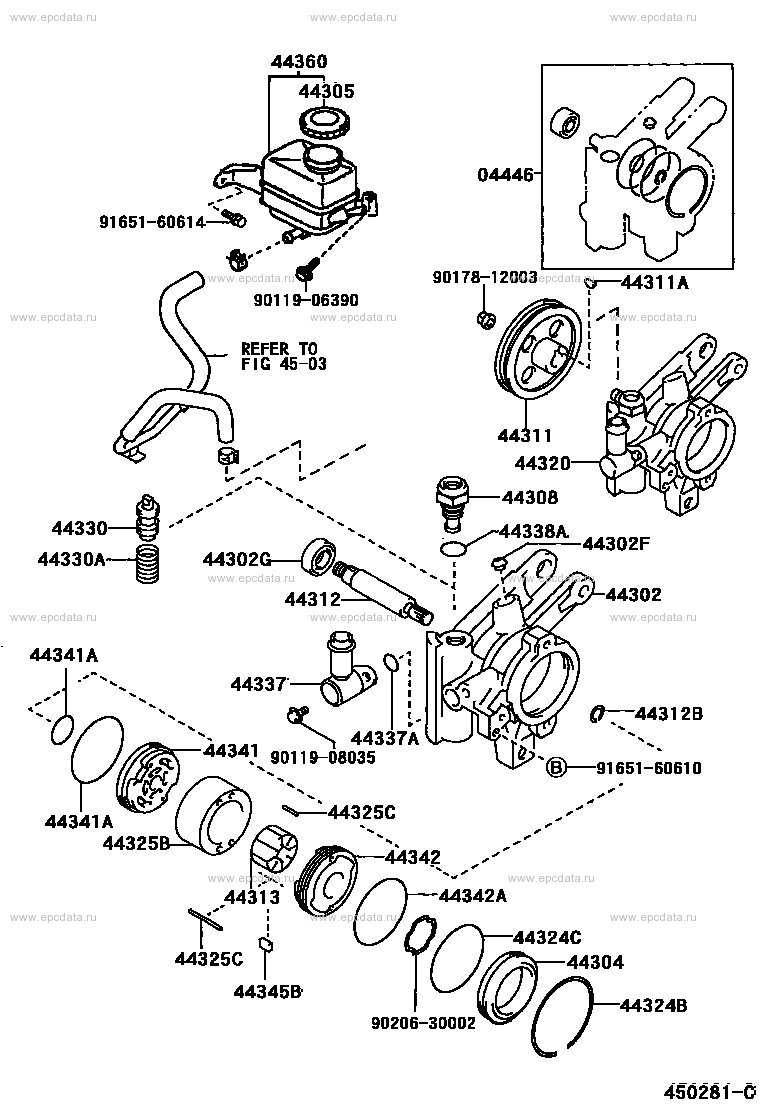

Click part number in the scheme or in the list:
44360 RESERVOIR ASSY, VANE PUMP OIL
44305 CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
04446 GASKET KIT, POWER STEERING PUMP
9165160614 ** Std Part
9017812003 ** Std Part
44311A KEY, VANE PUMP PULLEY
9011906390 ** Std Part
** 45-03
44311 PULLEY, VANE PUMP
44320 PUMP ASSY, VANE
44308 UNION SUB-ASSY, PRESSURE PORT
44330 VALVE ASSY, FLOW CONTROL
44338A RING, O (FOR PRESSURE PORT UNION)
44302F SEAT, UNION (FOR VANE PUMP HOUSING)
44330A SPRING, COMPRESSION (FOR FLOW CONTROL VALVE)
44302G SEAL, OIL, NO.2 (FOR VANE PUMP HOUSING)
44302 HOUSING SUB-ASSY, VANE PUMP, FRONT
44312 SHAFT, VANE PUMP
44341A RING, O (FOR VANE PUMP FRONT SIDE PLATE)
44337 UNION, POWER STEERING SUCTION PORT
44312B RING, SNAP, NO.1 (FOR VANE PUMP SHAFT)
44337A RING, O (FOR POWER STEERING SUCTION PORT)
44341 PLATE, VANE PUMP SIDE, FRONT
9011908035 ** Std Part
9165160610 ** Std Part
44325C PIN, STRAIGHT (FOR VANE PUMP CAM RING)
44325B RING, VANE PUMP CAM
44342 PLATE, VANE PUMP SIDE, REAR
44342A RING, O (FOR VANE PUMP SIDE PLATE REAR)
44313 ROTOR, VANE PUMP
44324C RING, O (FOR PUMP HOUSING REAR)
44304 HOUSING SUB-ASSY, VANE PUMP, REAR
44345B PLATE, VANE PUMP
44324B RING, HOLE SNAP (FOR PUMP HOUSING REAR)
9020630002 ** Std Part |
