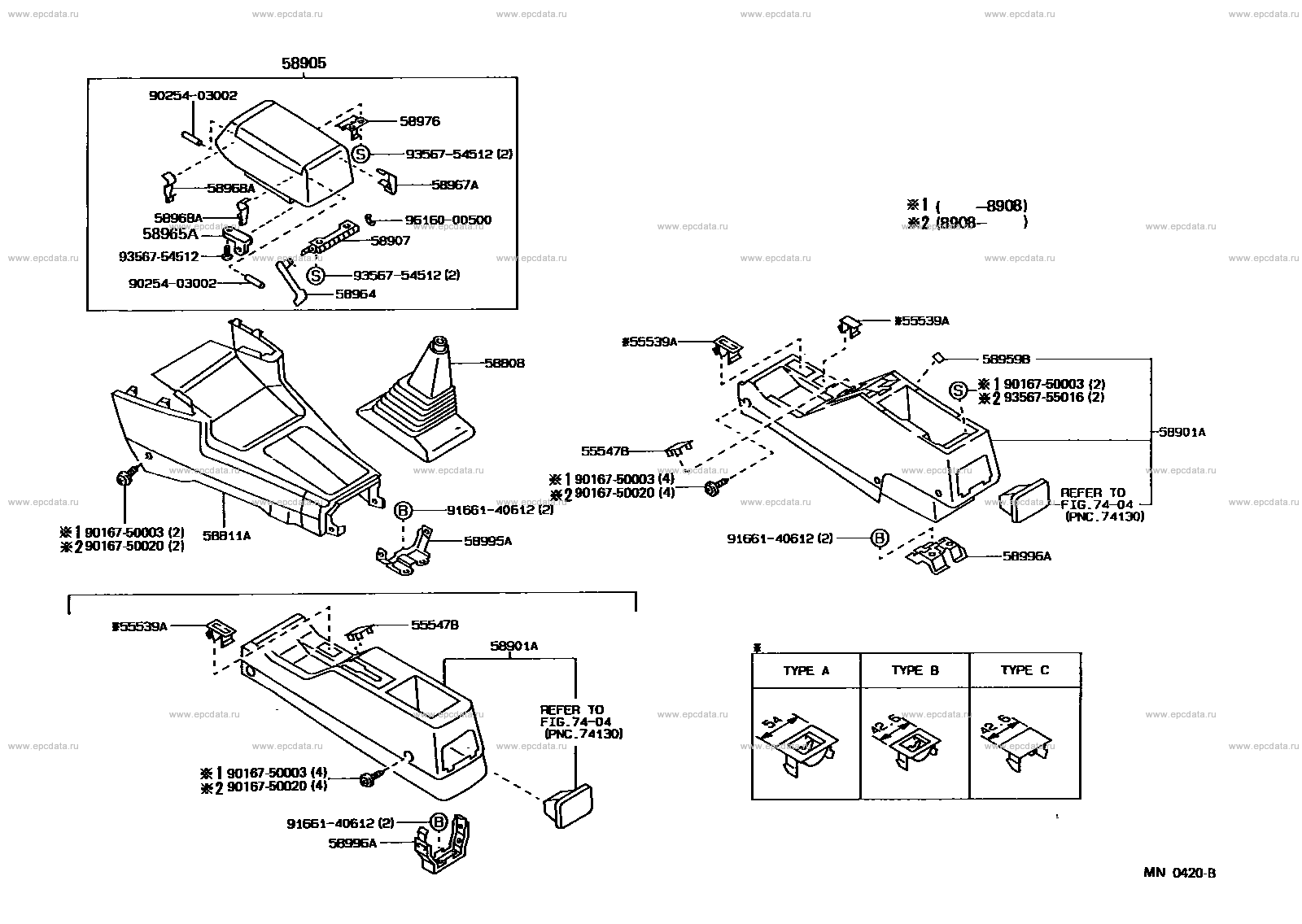

Click part number in the scheme or in the list:
58905 DOOR SUB-ASSY, CONSOLE COMPARTMENT
9025403002 ** Std Part
58976 STRIKER, CONSOLE COMPARTMENT DOOR LOCK
9356754512 ** Std Part
58967A SPRING, CONSOLE DOOR STOPPER
58968A BRACKET, CONSOLE DOOR STOPPER
9616000500 ** Std Part
58965A STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58907 HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58964 STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
55539A COVER, SPARE SWITCH HOLE
58959B CUSHION, CONSOLE COMPARTMENT DOOR
58808 COVER SUB-ASSY, SHIFTING HOLE
9016750003 ** Std Part
9356755016 ** Std Part
58901A BOX SUB-ASSY, CONSOLE, REAR
55547B COVER, REMOTE CONTROL MIRROR HOLE
9016750020 ** Std Part
** 74-04
9166140612 ** Std Part
58811A BOX, CONSOLE, FRONT
58995A BRACKET, CONSOLE BOX MOUNTING, NO.1
58996A BRACKET, CONSOLE BOX MOUNTING, NO.2 |
