ToyotaCorollaAE101LAE101L-AEMNKBTransmission and chassisFront disc brake caliper & dust cover

Front disc brake caliper & dust cover for Corolla AE101L




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 47750 47750-12450 01 09.1994 - 09.1995 CYLINDER ASSY, DISC BRAKE, LH AE101..TUR
 461.49 USD
02 47750 47750-12450 01 09.1995 - 08.1996 CYLINDER ASSY, DISC BRAKE, LH AE101..TUR
 461.49 USD
03 47750 47750-12451 01 08.1996 - 05.1999 CYLINDER ASSY, DISC BRAKE, LH AE101..TUR
 289.41 USD

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3 Scheme 4

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Click part number in the scheme or in the list:

47710A BOLT, HEXAGON (FOR FRONT DISC BRAKE CALIPER)
47716 PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47771 PLATE, PAD WEAR INDICATOR, NO.1
47717 PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47703 COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47704 COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47744 SHIM, ANTI-SQUEAL, NO.1 (FOR FRONT DISC BRAKE)
31478B CAP, BLEEDER PLUG (FOR FRONT DISC BRAKE)
47744A SHIM, ANTI-SQUEAL, NO.3 (FOR FRONT DISC BRAKE)
47781A BOLT (FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47743A SPRING, ANTI-SQUEAL (FOR FRONT DISC BRAKE)
47745 SHIM, ANTI-SQUEAL, NO.2 (FOR FRONT DISC BRAKE)
47730 CYLINDER ASSY, FRONT DISC BRAKE, RH
47750 CYLINDER ASSY, DISC BRAKE, LH
47775 BOOT, BUSH DUST (FOR FRONT DISC BRAKE)
47779 BUSH, CYLINDER SLIDE, NO.2 (FOR FRONT DISC BRAKE)
47721A BOLT (FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47547B PLUG, BLEEDER (FOR FRONT DISC BRAKE)
47721 MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47731 PISTON, FRONT DISC BRAKE
47722 MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47731A RING, SET (FOR FRONT DISC BRAKE PISTON)
47769 BUSH, CYLINDER SLIDE, NO.1 (FOR FRONT DISC BRAKE)
04479 CYLINDER KIT, DISC BRAKE, FRONT
04491 PAD KIT, DISC BRAKE, FRONT

Scheme 2

Click part number in the scheme or in the list:

47716 PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47710A BOLT, HEXAGON (FOR FRONT DISC BRAKE CALIPER)
47771 PLATE, PAD WEAR INDICATOR, NO.1
47717 PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47703 COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47744 SHIM, ANTI-SQUEAL, NO.1 (FOR FRONT DISC BRAKE)
47704 COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47745A SHIM, ANTI-SQUEAL, NO.4 (FOR FRONT DISC BRAKE)
31478B CAP, BLEEDER PLUG (FOR FRONT DISC BRAKE)
47744A SHIM, ANTI-SQUEAL, NO.3 (FOR FRONT DISC BRAKE)
47745 SHIM, ANTI-SQUEAL, NO.2 (FOR FRONT DISC BRAKE)
47743A SPRING, ANTI-SQUEAL (FOR FRONT DISC BRAKE)
47719A PLATE, PAD SUPPORT, NO.4 (FOR FRONT DISC BRAKE)
47718A PLATE, PAD SUPPORT, NO.3 (FOR FRONT DISC BRAKE)
47781A BOLT (FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47730 CYLINDER ASSY, FRONT DISC BRAKE, RH
47750 CYLINDER ASSY, DISC BRAKE, LH
9010508164 ** Std Part
47715A PIN, FRONT DISC BRAKE CYLINDER SLIDE
47547B PLUG, BLEEDER (FOR FRONT DISC BRAKE)
47721 MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47722 MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47731 PISTON, FRONT DISC BRAKE
47731A RING, SET (FOR FRONT DISC BRAKE PISTON)
47769 BUSH, CYLINDER SLIDE, NO.1 (FOR FRONT DISC BRAKE)
04491 PAD KIT, DISC BRAKE, FRONT
04479 CYLINDER KIT, DISC BRAKE, FRONT

Scheme 3

Click part number in the scheme or in the list:

47716 PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47744 SHIM, ANTI-SQUEAL, NO.1 (FOR FRONT DISC BRAKE)
47744A SHIM, ANTI-SQUEAL, NO.3 (FOR FRONT DISC BRAKE)
47717 PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47703 COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47704 COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47710A BOLT, HEXAGON (FOR FRONT DISC BRAKE CALIPER)
47745 SHIM, ANTI-SQUEAL, NO.2 (FOR FRONT DISC BRAKE)
31478B CAP, BLEEDER PLUG (FOR FRONT DISC BRAKE)
47745A SHIM, ANTI-SQUEAL, NO.4 (FOR FRONT DISC BRAKE)
47743A SPRING, ANTI-SQUEAL (FOR FRONT DISC BRAKE)
47719A PLATE, PAD SUPPORT, NO.4 (FOR FRONT DISC BRAKE)
47781A BOLT (FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47718A PLATE, PAD SUPPORT, NO.3 (FOR FRONT DISC BRAKE)
47730 CYLINDER ASSY, FRONT DISC BRAKE, RH
47750 CYLINDER ASSY, DISC BRAKE, LH
9010508164 ** Std Part
47547B PLUG, BLEEDER (FOR FRONT DISC BRAKE)
47715A PIN, FRONT DISC BRAKE CYLINDER SLIDE
47775 BOOT, BUSH DUST (FOR FRONT DISC BRAKE)
47721 MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47722 MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47731 PISTON, FRONT DISC BRAKE
47769 BUSH, CYLINDER SLIDE, NO.1 (FOR FRONT DISC BRAKE)
47731A RING, SET (FOR FRONT DISC BRAKE PISTON)
04479 CYLINDER KIT, DISC BRAKE, FRONT
04491 PAD KIT, DISC BRAKE, FRONT

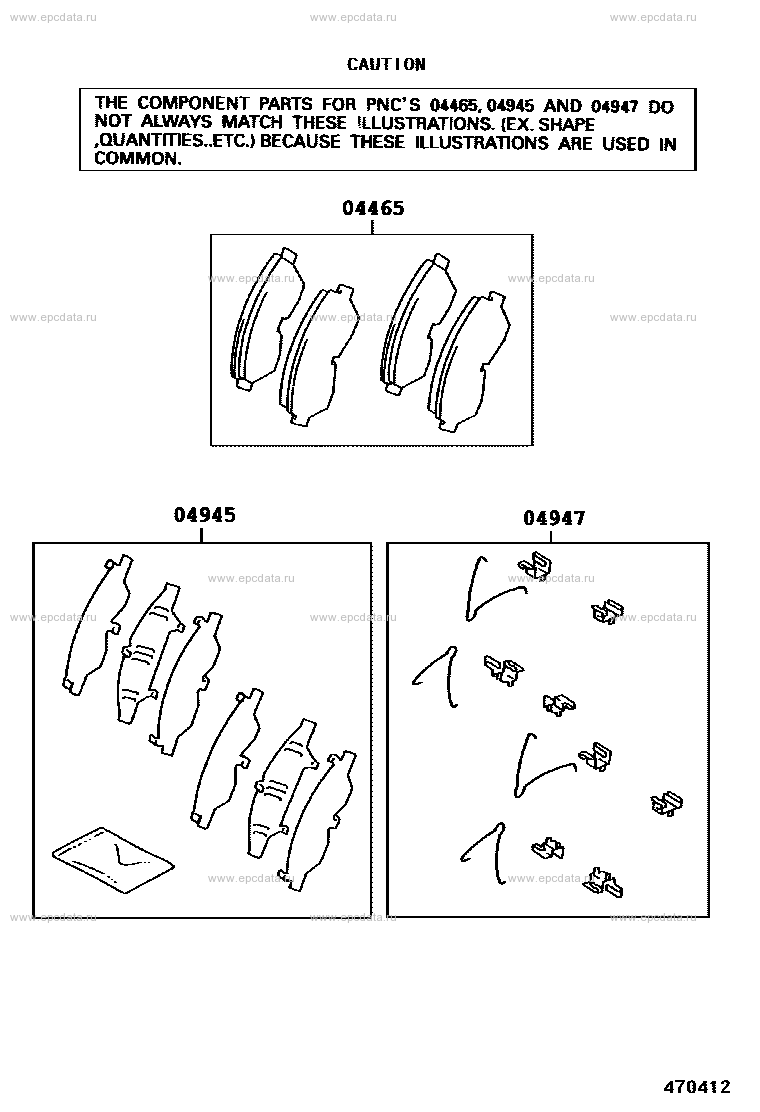

Scheme 4

Click part number in the scheme or in the list:

04945 SHIM KIT, ANTI SQUEAL, FRONT
04947 FITTING KIT, DISC BRAKE, FRONT
04465 PAD KIT, DISC BRAKE, FRONT (PAD ONLY)
