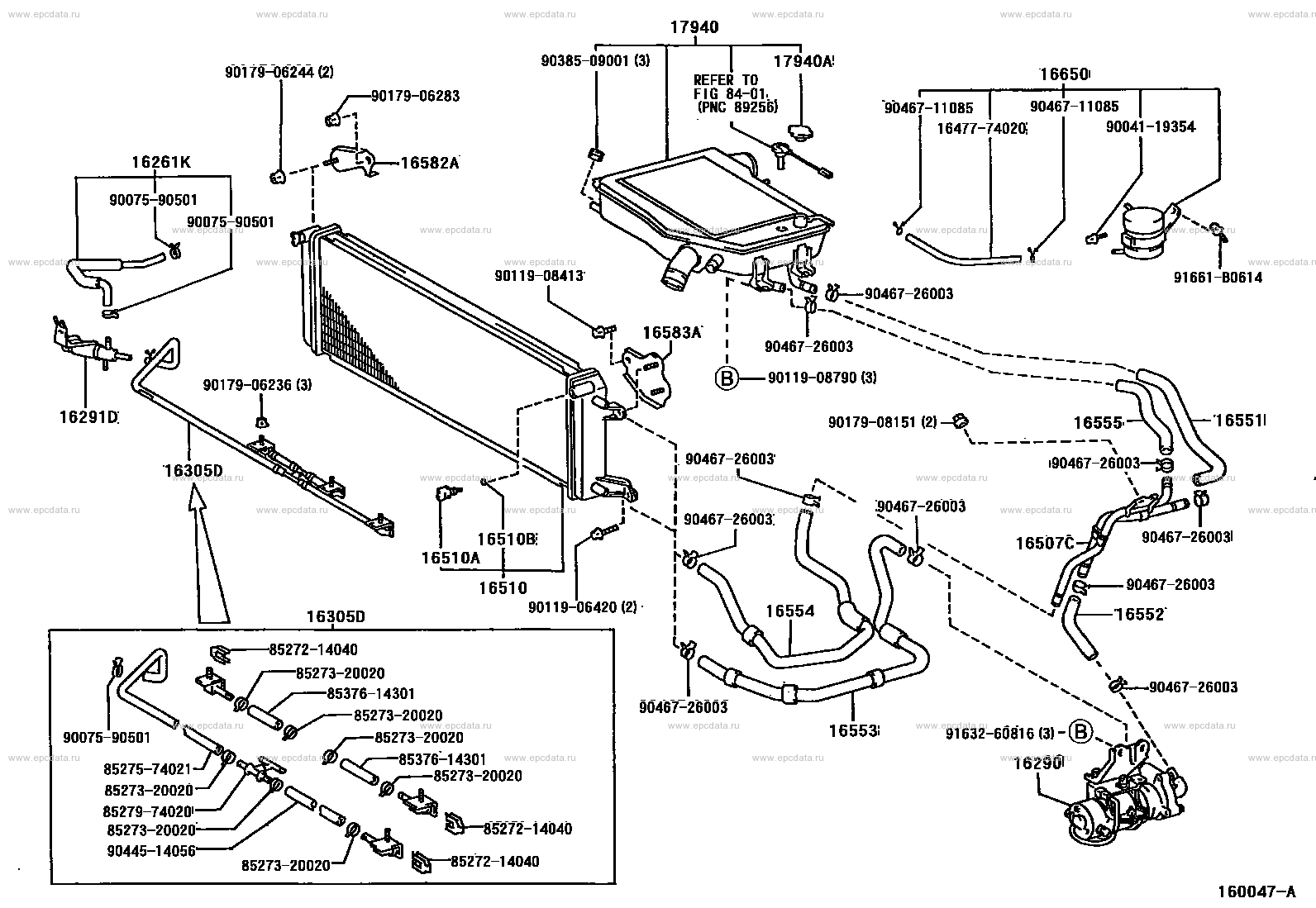

Click part number in the scheme or in the list:
17940 INTERCOOLER ASSY
9038509001 ** Std Part
17940A CAP SUB-ASSY, INTERCOOLER
9017906244 ** Std Part
16650 TANK ASSY, RESERVE (FOR INTERCOOLER)
** 84-01
9017906283 ** Std Part
9046711085 ** Std Part
9004119354 ** Std Part
1647774020 ** Std Part
16261K HOSE, WATER BY-PASS
16582A BRACKET, RADIATOR, NO.1
9007590501 ** Std Part
9011908413 ** Std Part
91661B0614 ** Std Part
9046726003 ** Std Part
16583A BRACKET, RADIATOR, NO.2
9011908790 ** Std Part
9017906236 ** Std Part
16291D JOINT, WATER HOSE
16551 HOSE, SUB-RADIATOR, NO.1
9017908151 ** Std Part
16555 HOSE, SUB-RADIATOR, NO.5
16305D OUTLET S/A, WATER BY-PASS
16510B RING, O (FOR SUB-RADIATOR DRAIN COCK PLUG)
16507C PIPE SUB-ASSY, SUB-RADIATOR, NO.1
16510A PLUG, DRAIN COCK (FOR SUB-RADIATOR)
16510 SUB-RADIATOR ASSY
9011906420 ** Std Part
16554 HOSE, SUB-RADIATOR, NO.4
16552 HOSE, SUB-RADIATOR, NO.2
8527214040 ** Std Part
8527320020 ** Std Part
8537614301 ** Std Part
16553 HOSE, SUB-RADIATOR, NO.3
9163260816 ** Std Part
16290 PUMP ASSY, WATER W/MOTOR & BRACKET
8527574021 ** Std Part
8527974020 ** Std Part
9044514056 ** Std Part |
