Air purifier or ion generator for Camry ACV40L

Click on the part subgroup below to get genuine part numbers.

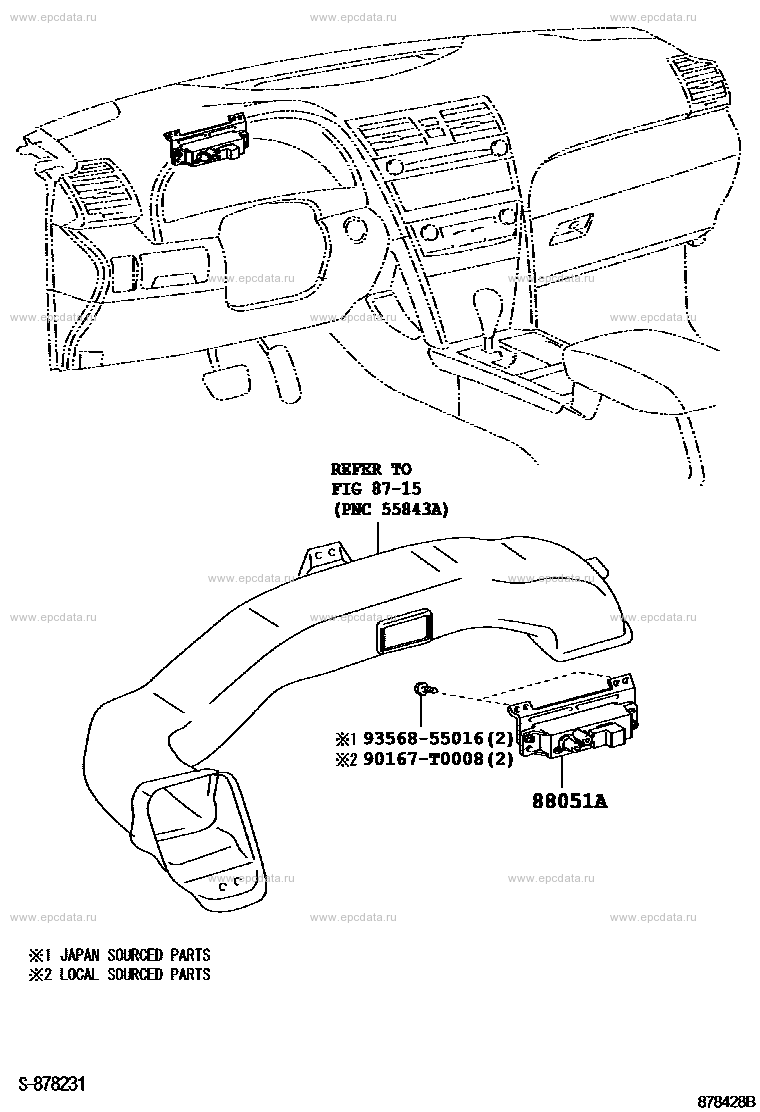

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 88051A GENERATOR SUB-ASSY,ION 9356855016 ** Std Part 90167T0008 ** Std Part ** 87-15

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 88566H DUCT, AIR, NO.1 88566J DUCT, AIR, NO.2 9017906292 ** Std Part 9009905263 ** Std Part 87211N DUCT, AIR PURIFIER AIR, NO.1 87211P DUCT, AIR PURIFIER AIR, NO.2 88905 WIRE SUB-ASSY, AIR PURIFIER, NO.1 88926 FILTER, AIR PURIFIER 88899X PLATE, AIR PURIFIER COVER 88915 RESISTOR, AIR PURIFIER 88912 FAN, AIR PURIFIER 88901 MOTOR SUB-ASSY, AIR PURIFIER 88688W BRACKET, AIR PURIFIER, NO.1 88688M BRACKET, AIR PURIFIER, NO.2 ** 84-01
