Switch & relay for Avalon MCX10L
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
Click part number in the scheme or in the list: 83420 GAGE ASSY, WATER TEMPERATURE SENDER83530 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 89615 SENSOR, KNOCK CONTROL 89428 SWITCH, TEMPERATURE DETECT, NO.2 84540 SWITCH ASSY, NEUTRAL START 9165140620 ** Std Part 9095001579 ** Std Part |
Scheme 2
|
Click part number in the scheme or in the list: 83420 GAGE ASSY, WATER TEMPERATURE SENDER |
Scheme 3
|
Click part number in the scheme or in the list: 89620 IGNITER ASSY82760 BRACKET ASSY, RELAY BLOCK 9011906005 ** Std Part 89438 SWITCH, POWER STEERING OIL PRESSURE 93319A5010 ** Std Part 9011906021 ** Std Part 82622 COVER, FUSIBLE LINK, UPPER 85915 RELAY, MAIN 82600F FUSE,FUSE BLOCK ** 45-03 82662A COVER, RELAY BLOCK, UPPER, NO.1 ** 84-04 82620A BLOCK ASSY, FUSIBLE LINK 9011906338 ** Std Part 9011906771 ** Std Part 28300 RELAY ASSY, STARTER 82741 BLOCK, ENGINE ROOM RELAY 86530 RELAY ASSY, HORN 82672A COVER, JUNCTION BLOCK 82663 COVER, RELAY BLOCK, LOWER 85916P RELAY, HEADLAMP 82616 PULLER, FUSE 9011906539 ** Std Part 85927 RELAY, COOLING FAN 82670A BLOCK ASSY, JUNCTION, NO.1 82600M FUSE, MEDIUM CURRENT 85999A BRACKET, RELAY, NO.2 82824L PIN, SHORT 85927A RELAY, COOLING FAN, NO.2 82623 COVER, FUSIBLE LINK, LOWER 82674 COVER, JUNCTION BLOCK LOWER 85927B RELAY, COOLING FAN, NO.3 85934 RELAY, MAGNET-CLUTCH 85916D RELAY, FOG LAMP 9011905021 ** Std Part 82673A BRACKET, JUNCTION BLOCK ** 82-02 |

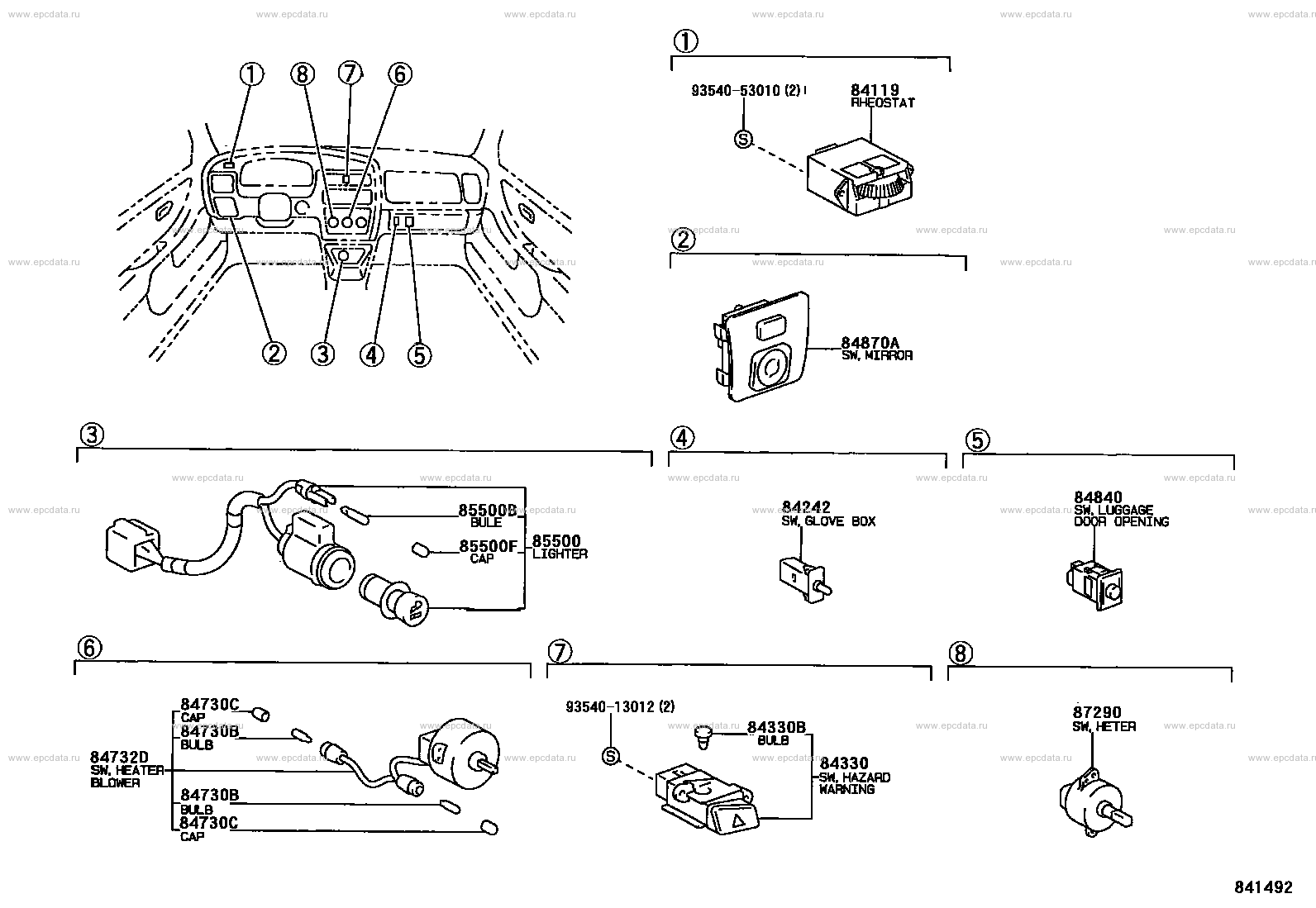

Scheme 4
|
Click part number in the scheme or in the list: 84119 RHEOSTAT, LIGHT CONTROL9354053010 ** Std Part 84870A SWITCH ASSY, OUTER MIRROR 84840 SWITCH ASSY, LUGGAGE DOOR OPENING 84242 SWITCH, GLOVE BOX LAMP 85500B BULB, CIGARETTE LIGHTER 85500 LIGHTER ASSY, CIGARETTE 85500F CAP, CIGARETTE LIGHTER BULB 84730C SWITCH ASSY, CONTROL 9354013012 ** Std Part 87290 SWITCH ASSY, HETER 84330B BULB, HAZARD WARNING SIGNAL SWITCH 84730B BULB, HEATER BLOWER SWITCH 84732D SWITCH, HEATER BLOWER 84330 SWITCH ASSY, HAZARD WARNING SIGNAL |
Scheme 5
|
Click part number in the scheme or in the list: 85912 RELAY, DEFOGGER85916N RELAY, TAIL LAMP 85930 RELAY ASSY, POWER WINDOW 85910D RELAY (FOR HEATER IDLE UP) ** 84-04 82734A BLOCK, CENTER JUNCTION 85980 RELAY ASSY, DOOR CONTROL 81980 FLASHER ASSY, TURN SIGNAL 82673C BRACKET, JUNCTION BLOCK 9016750002 ** Std Part 9162660618 ** Std Part 82671A BLOCK, JUNCTION 8271107050 ** Std Part 9165160614 ** Std Part 9016450043 ** Std Part 84550 SWITCH ASSY, PARKING BRAKE 82600G PLATE, CAUTION (FOR FUSE) 84340 SWITCH ASSY, STOP LAMP 85431 SOLENOID, SHIFT LOCK 85933 COMPUTER, SHIFT LOCK CONTROL 82666 HOLDER, CONNECTOR 84727 SWITCH, SHIFT LOCK CONTROL 82731 BLOCK, DRIVER SIDE JUNCTION 82641 RELAY, INTEGRATION 9011906088 ** Std Part |
Scheme 6

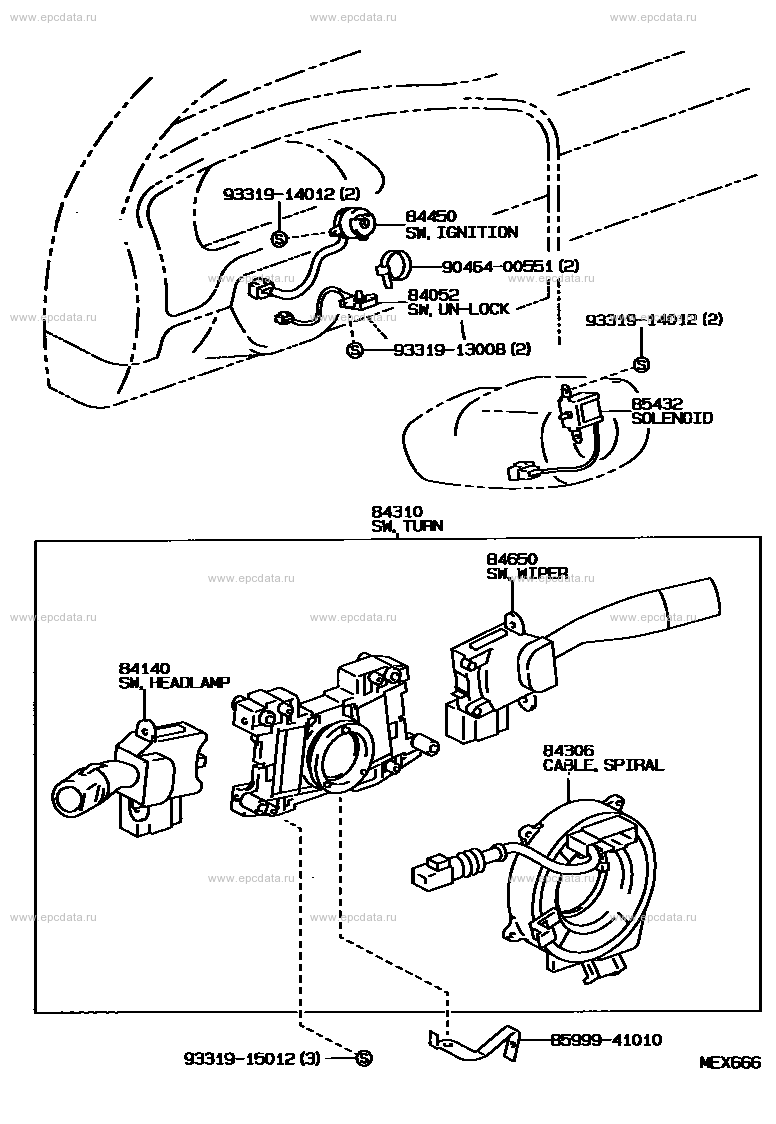

Scheme 7
|
Click part number in the scheme or in the list: 9331914012 ** Std Part84450 SWITCH ASSY, IGNITION OR STARTER 9046400551 ** Std Part 84052 SWITCH ASSY, UN-LOCK WARNING 9331913008 ** Std Part 85432 SOLENOID, KEY INTER LOCK 84310 SWITCH ASSY, TURN SIGNAL 84650 SWITCH ASSY, WINDSHIELD WIPER 84140 SWITCH ASSY, HEADLAMP DIMMER 84306 CABLE SUB-ASSY, SPIRAL 8599941010 ** Std Part 9331915012 ** Std Part |
