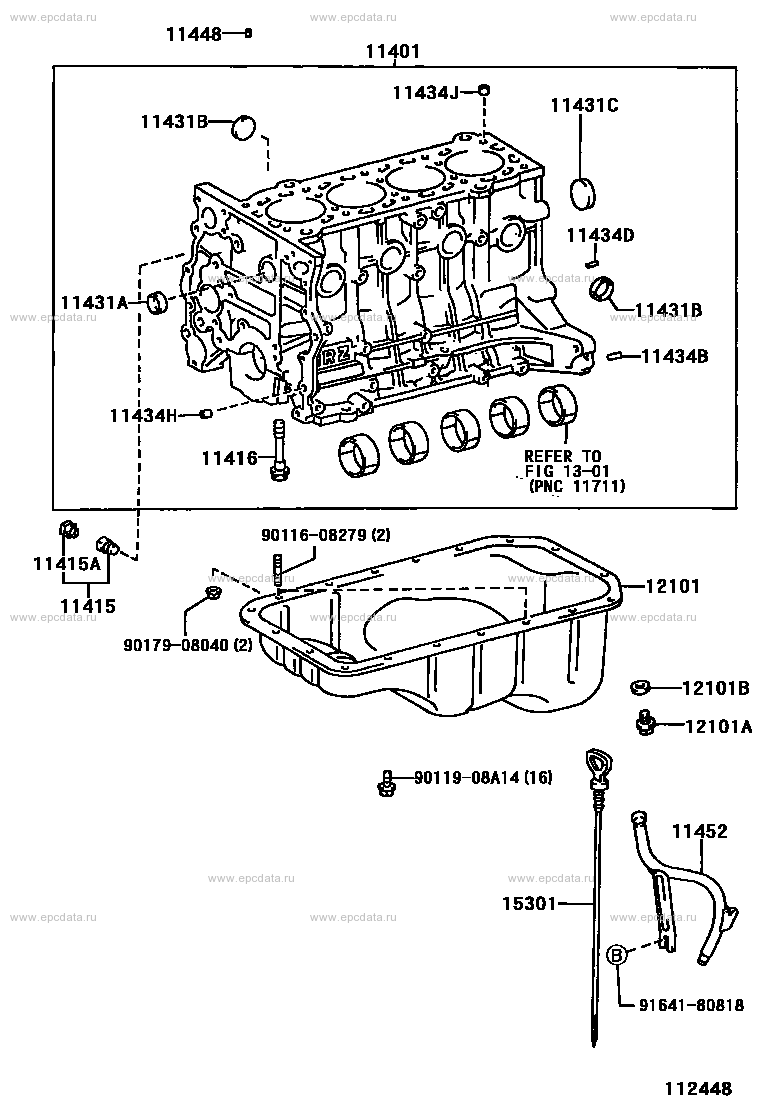

Click part number in the scheme or in the list:
11448 ORIFICE, CYLINDER BLOCK OIL
11401 BLOCK SUB-ASSY, CYLINDER
11434J PIN, RING (FOR CYLINDER HEAD SET)
11431C PLUG, TIGHT, NO.3 (FOR CYLINDER BLOCK)
11431B PLUG, TIGHT, NO.2 (FOR CYLINDER BLOCK)
11434D PIN, STRAIGHT (FOR ENGINE REAR OIL SEAL)
11431A PLUG, TIGHT, NO.1 (FOR CYLINDER BLOCK)
11434B PIN, STRAIGHT (FOR CLUTCH HOUSING SET)
11434H PIN, RING (FOR TIMING BELT COVER SET)
11416 BOLT (FOR CRANKSHAFT BEARING CAP SET)
** 13-01
9011608279 ** Std Part
11415A PLUG, WATER DRAIN COCK (FOR CYLINDER BLOCK)
12101 PAN SUB-ASSY, OIL
11415 COCK SUB-ASSY, WATER DRAIN (FOR CYLINDER BLOCK)
9017908040 ** Std Part
12101B GASKET (FOR OIL PAN DRAIN PLUG)
12101A PLUG (FOR OIL PAN DRAIN)
9011908A14 ** Std Part
11452 GUIDE, OIL LEVEL GAGE
15301 GAGE SUB-ASSY, OIL LEVEL
9164180818 ** Std Part |
